Description

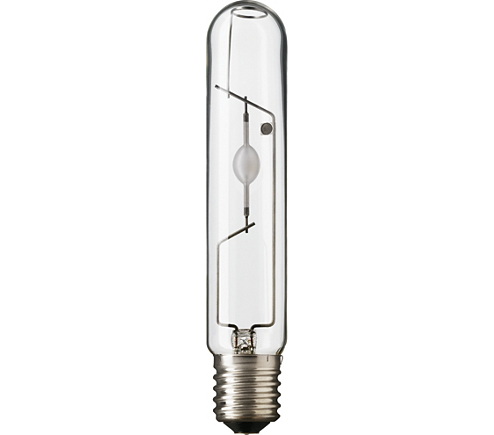

Philips Lighting 928070119230 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approval and Application
- Energy Consumption kWh/1000 h
- 250 kWh
- Energy Efficiency Label (EEL)
- A+
- Mercury (Hg) Content (Nom)
- 32.0 mg
Controls and Dimming
- Dimmable
- No
- Run-Up Time 90% (Max)
- 3 min
General Information
- Cap-Base
- E40 [ E40]
- Life to 10% Failures (Nom)
- 16000 h
- Life to 20% Failures (Nom)
- 20000 h
- Life to 50% Failures (Nom)
- 30000 h
- Life to 5% Failures (Nom)
- 12000 h
- LSF 12000 h Rated
- 95 %
- LSF 16000 h Rated
- 90 %
- LSF 20000 h Rated
- 80 %
- LSF 2000 h Rated
- 99 %
- LSF 24000 h Rated
- 70 %
- LSF 28000 h Rated
- 56 %
- LSF 30000 h Rated
- 50 %
- LSF 4000 h Rated
- 99 %
- LSF 6000 h Rated
- 99 %
- LSF 8000 h Rated
- 98 %
- Operating Position
- UNIVERSAL [ Any or Universal (U)]
- System Description
- Universal
Light Technical
- Chromaticity Coordinate X (Nom)
- 354
- Chromaticity Coordinate Y (Nom)
- 351
- Color Code
- 842 [ CCT of 4200K]
- Color Designation
- Cool White (CW)
- Color Rendering Index (Nom)
- 88
- Correlated Color Temperature (Nom)
- 4200 K
- LLMF 12000 h Rated
- 80 %
- LLMF 16000 h Rated
- 77 %
- LLMF 20000 h Rated
- 75 %
- LLMF 2000 h Rated
- 92 %
- LLMF 4000 h Rated
- 87 %
- LLMF 6000 h Rated
- 84 %
- LLMF 8000 h Rated
- 82 %
- Luminous Efficacy (Rated) (Nom)
- 96.5 lm/W
- Luminous Flux (Rated) (Nom)
- 21900 lm
- Ratio Scotopic/Photopic Lumens
- 1.87
Luminaire Design Requirements
- Bulb Temperature (Max)
- 550 °C
- Cap-Base Temperature (Max)
- 250 °C
Mechanical and Housing
- Bulb Finish
- Clear
- Bulb Material
- Hard Glass
Operating and Electrical
- Ignition Peak Voltage (Max)
- 5000 V
- Ignition Supply Voltage (Max)
- 198 V
- Ignition Time (Max)
- 30 s
- Lamp Current (EM) (Nom)
- 2.14 A
- Lamp Current Run-Up (Max)
- 2.2 A
- Power (Rated) (Nom)
- 227.0 W
- Re-Ignition Time (Min) (Max)
- 900 s
- Voltage (Max)
- 132 V
- Voltage (Min)
- 118 V
- Voltage (Nom)
- 134 V
Product Data
- EAN/UPC - Product
- 8718696596814
- Full product code
- 871869659681400
- Material Nr. (12NC)
- 928070119230
- Net Weight (Piece)
- 166.000 g
- Numerator - Packs per outer box
- 12
- Numerator - Quantity Per Pack
- 1
- Order code
- 928070119230
- Order product name
- MASTERColour CDM-T MW eco 230W/842 E40
UV
- Pet (Niosh) (Nom)
- 8 h/500lx
