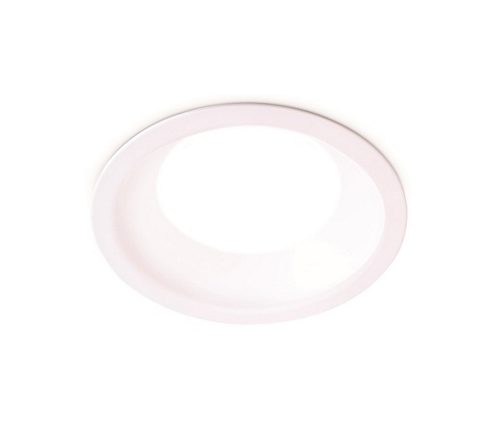

Philips 911401531931
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Philips Lighting 911401531931 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Application Conditions
- Ambient temperature range
- 0 to +35 °C
- Suitable for random switching
- Not applicable
Approval and Application
- Ingress protection code
- IP20 [ Finger-protected]
- Mech. impact protection code
- IK02 [ 0.2 J standard]
Controls and Dimming
- Dimmable
- No
General Information
- Beam angle of light source
- 90 x 90 °
- CE mark
- CE mark
- Connection
- Push-in connector 2-pole
- Constant light output
- No
- Driver included
- Yes
- Driver/power unit/transformer
- Power supply unit
- Glow-wire test
- Temperature 650 °C, duration 5 s
- Lamp family code
- LED18S [ LED Module, system flux 1800 lm]
- Light source color
- 830 warm white
- Light source replaceable
- No
- Luminaire light beam spread
- 10°
- Number of gear units
- 1 unit
- Number of products on MCB of 16 A type B
- 48
- Optic type
- Symmetrical
- Protection class IEC
- Safety class I
- RoHS mark
- RoHS mark
- Warranty period
- 3 years
Initial Performance (IEC Compliant)
- Init. Color Rendering Index
- >80
- Init. Corr. Color Temperature
- 3000 K
- Initial chromaticity
- (0.43, 0.40) SDCM <5
- Initial input power
- 18 W
- Initial LED luminaire efficacy
- 100 lm/W
- Initial luminous flux (system flux)
- 1800 lm
- Luminous flux tolerance
- +/-10%
- Power consumption tolerance
- +/-10%
Mechanical and Housing
- Fixation material
- Stainless steel
- Housing Material
- Metal/Plastic
- Optical cover/lens finish
- Opal
- Optical cover/lens material
- Polycarbonate
- Optic material
- Polycarbonate
- Overall diameter
- 233 mm
- Overall height
- 120 mm
- Reflector material
- Steel
Operating and Electrical
- Input Frequency
- 50 to 60 Hz
- Input Voltage
- 220-240 V
- Inrush current
- 17.2 A
- Inrush time
- 0.0016 ms
- Power Factor (Min)
- 0.9
Over Time Performance (IEC Compliant)
- Driver failure rate at 5000 h
- 1.50 %
- Median useful life L70B50
- 30000 h
- Median useful life L80B50
- 20000 h
- Median useful life L90B50
- 10000 h
Product Data
- EAN/UPC - Product
- 8710163306612
- Full product code
- 871016330661299
- Material Nr. (12NC)
- 911401531931
- Net Weight (Piece)
- 0.630 kg
- Numerator - Packs per outer box
- 8
- Numerator - Quantity Per Pack
- 1
- Order code
- 911401531931
- Order product name
- DN060B LED18S/830 PSU WH
