Philips 872790086347500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HF-P 249 TL5 HO III 220-240V 50/60Hz IDC

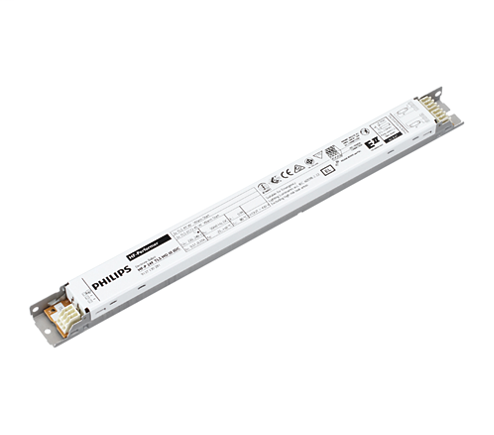

Philips Lighting 872790086347500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approval and Application
- Bumps Standard
- IEC 68-2-29 Eb
- EMC Immunity Standard
- IEC 61547
- Emergency Standard
- IEC 60598-2-22
- EMI 9 kHz ... 30 MHz
- EN55015
- Energy Efficiency Index
- A2 BAT
- Environmental Standard
- ISO 14001
- Harmonic Current Emission Standard
- IEC 61000-3-2
- Hum And Noise Level
- < 30 dB(A)
- Humidity Standard
- EN 61347-2-3 clause 11
- IP Classification
- IP 20 [ Ingress Protection 20]
- Performance Standard
- IEC 60929
- Quality Standard
- ISO 9000:2000
- Safety Standard
- IEC 61347-2-3
- Temperature Marking
- Yes
- Vibration Standard
- IEC68-2-6 F c
Emergency Operation
- Battery Voltage Guaranteed Ignition
- 186-275 V
- Battery Voltage Guaranteed Operation
- 176-275 V
- Battery Voltage Lamp Ignition
- 198-254 V
- Battery Voltage Lamp Operation
- 176-254
- Emergency Ballast Lumen Factor (EBLF) (Nom)
- 100 %
- Nominal Light Output After 5 Seconds
- 50% of EBLF
- Nominal Light Output After 60 Seconds
- 100% of EBLF
- Normal Operating Voltage (DC)
- 220-240 V
General Information
- Application Code
- III
- Automatic Restart
- Yes
- Lamp Type
- TL5 HO
- Number of Lamps
- 2 piece/unit
- Number of Products on MCB (16A Type B) (Nom)
- 12
- Type Version
- IDC
Mechanical and Housing
- Housing
- L360x30x22
Operating and Electrical
- Ballast Factor (Nom)
- 1
- Constant Wattage Deviation
- -2%/+2%
- Crestfactor (Max)
- 1.7
- Earth Leakage Current (Nom)
- 0.5 mA
- Ignition Method
- Programmed Start
- Ignition Time (Max)
- 0.9 s
- Input Frequency
- 50 to 60 Hz
- Input Voltage
- 220 to 240 V
- Inrush Current Peak (Max)
- 31 A
- Inrush Current Width
- 0.25 ms
- Mains Voltage Performance (AC)
- -8%-+6%
- Mains Voltage Safety (AC)
- -10%-+10%
- Operating Frequency (Nom)
- 45 kHz
- Power Factor 100% Load (Nom)
- 0.99
- Power Losses (Nom)
- 4.5-5.5 W
Product Data
- EAN/UPC - Product
- 8711500881984
- Full product code
- 872790086347500
- Material Nr. (12NC)
- 913713028166
- Net Weight (Piece)
- 0.267 kg
- Numerator - Packs per outer box
- 12
- Numerator - Quantity Per Pack
- 1
- Order code
- 913713028166
- Order product name
- HF-P 249 TL5 HO III 220-240V 50/60Hz IDC
System characteristics
- Lamp Power on TL5
- 102.5 W
- Lamp Power on TL5 ECO
- 93 W
- Power Loss on TL5
- 5.5 W
- Power Loss on TL5 ECO
- 4.5 W
- Rated Ballast-Lamp Power
- 49 W
- Rated Lamp Power on TL5
- 101 W
- Rated Lamp Power on TL5 ECO
- 45 W
- System Power on TL5
- 106.5 W
- System Power on TL5 ECO
- 97.5 W
Temperature
- T-Ambient (Max)
- 60 °C
- T-Ambient (Min)
- -25 °C
- T-Case Lifetime (Nom)
- 80 °C
- T-Case Maximum (Max)
- 80 °C
- T-Ignition (Max)
- 60 °C
- T-Ignition (Min)
- -25 °C
- T-Storage (Max)
- 80 °C
- T-Storage (Min)
- -40 °C
Wiring
- Cable Capacity Output Wires Mutual (Nom)
- 200 pF
- Cable Capacity Output Wires to Earth (Nom)
- 200 pF
- Cable Length Hot Wiring
- 0.75 m
- Connector Type Input Terminals
- WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
- Connector Type Output Terminals
- WAGO 251 universal connector [ Suitable for both automatic wiring (ALF and ADS) and manual wiring]
- Dual Fixture Master/Slave
- Not applicable [ Master/Slave oper. not applicable]
- Input Terminal Cross Section
- 0.50-1.00 mm²
- Output Terminal Cross Section
- 0.50-1.00 mm²
- Wire Striplength
- 8.0-9.0 mm
