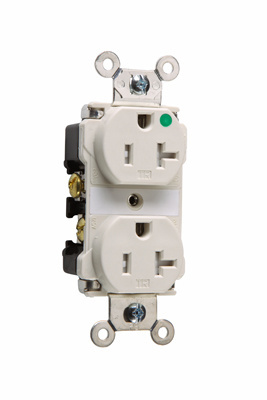

Pass & Seymour TR63HLA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Pass & Seymour TR63HLA is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amperage
- 20 A
- Application Sector
- Commercial
- Connection
- Back and side wire
- Country of Origin
- Mexico
- Dielectric Strength
- Withstands 2000V minimum
- Environmental Conditions
- Flammability: UL94 V2
- Is Tamper-Resistant
- Yes
- NEMA Rating
- 5-20R
- Number of Poles
- Double Pole
- Number of Wires
- 3.0
- Product Line
- Pass & Seymour
- Special Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects. Exclusive patented feature, circuit label on face allows permanent circuit identification. Extra heavy-duty brass, one-piece mounting strap with integral ground. One-piece, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Impact-resistant nylon face and back body. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Two drive screws anchor strap to back body and face. Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection. Auto-ground clip assures positive ground.
- Standard
- UL498, CSA C22.2 No. 42
- Temperature Rating
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
- Voltage
- 125.0 V
- Wire Size
- #14 - #10
