Panduit ZDF48-S65
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

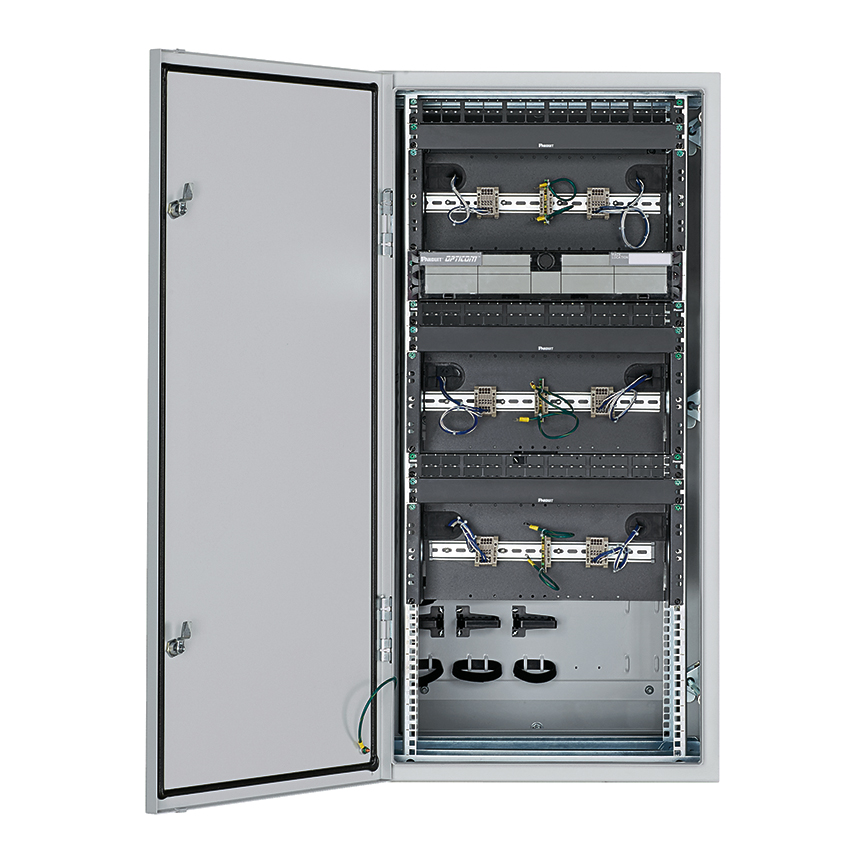

Pre-Configured Universal Distribution Frame, Mild steel enclosure, 26U, for six industrial switches; pre-installed with front and rear rack angles, fiber tray, (3) 48-port patch panels, (3) 4U DIN mount brackets, (3) maintenance free UPS's, redundant power supplies AC to DC, terminal blocks, wiring for 120 V AC input, cable management, grounding, (6) fiber spools, (2) back panels, (2) ESD ports, cage nuts, labeling for cable routing, strain relief barsUniversal Distribution Frame, 26RU
Panduit ZDF48-S65 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- Country of Origin 2Digit
- US
- EAN
- 00613056667426
- GTIN Package
- 00613056667426
- Hazardous Material Flag
- N
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 1
- Pallet Weight
- 220.0000
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 44.8148
- Standard Package Weight Pounds
- 220.0000
- Std Package Height In
- 40
- Std Package Height MM
- 1016
- Std Package Length In
- 44
- Std Package Length MM
- 1117.6
- Std Package Width In
- 44
- Std Package Width MM
- 1117.6
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305666742
Specifications
- Application
- Industrial Automation
- Color
- Gray
- Compatible Switch Type
- Industrial DIN Mount
- Finish/Coating
- Powder-Coated
- Includes
- 26RU Dual Hinge NEMA 4/12 Enclosure; Keylocking Wing Knobs are Included Providing Access Control to the Enclosure; (2) Keys are Included with Each Enclosure; Accommodations for an Optional Air Conditioner; Installed Front and Rear Cage Nut Rails in Optimized Positions for Equipment Mounting; Installed Fiber Enclosure FRME2U (72 Fiber Capacity); Installed Door Ground Whips; Installed Panduit 20-Port Ground Bar; Infrastructure Ground Cable; Cable/Fiber/Power Penetration Recommendation Template for Incoming Power and Cables; Instructions for Cable Routing and Management
- IP Rating
- 4X/12 or 4/4X/12, IP66
- Material
- Mild Steel
- Maximum Load Capacity (kg)
- 158.8
- Maximum Load Capacity (lb)
- 350
- Mount Method
- Wall Mount
- NEMA Rating
- 4
- Number of Rack Units
- 26
- Overall Depth (In.)
- 31
- Overall Depth (mm)
- 787.4
- Overall Height (In.)
- 48.54
- Overall Height (mm)
- 1232.9
- Overall Width (In.)
- 23.62
- Overall Width (mm)
- 599.9
- Power Source
- Maintenance Free UPS
- Product Segment
- IAI
- Product Type
- Industrial Distribution Frame
- Standards Met
- UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12, and IP66 Rated; RoHS Compliant
- Sub Brand
- IndustrialNet™
- Switch Capacity
- 6
