Panduit ZDF48-6RA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

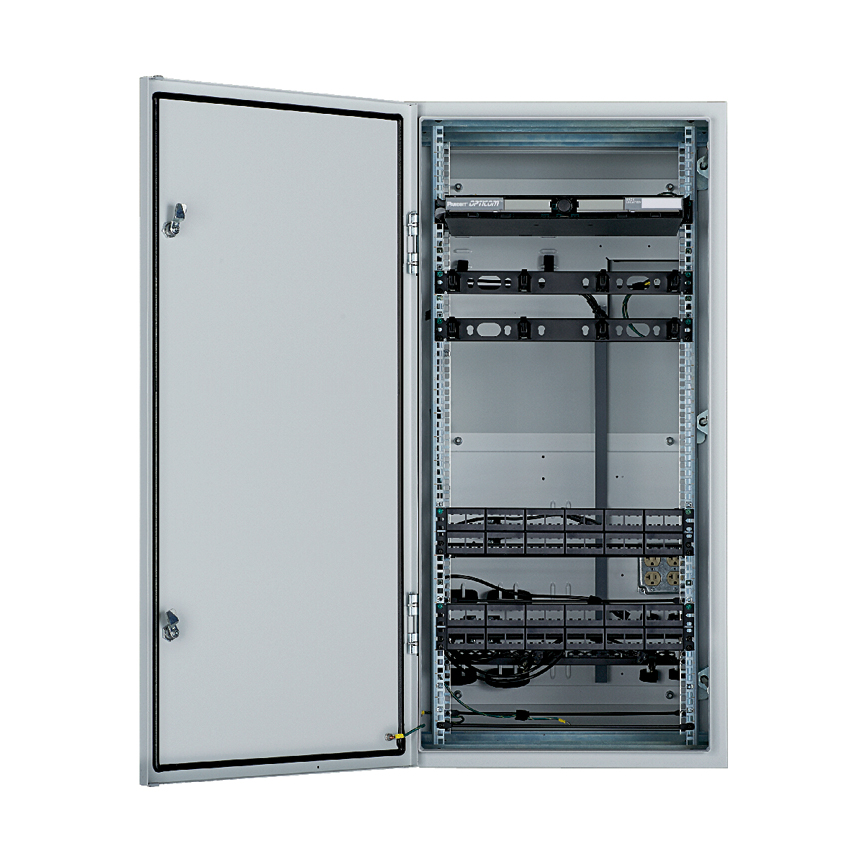

Pre-Configured Industrial Distribution Frame, Stainless steel enclosure; 26U; for two access and two distribution switches; pre-installed with front and rear rack angles, fiber enclosure, 48-port patch panel, cable management, grounding, 10" DIN rail, (2) fiber spools, (2) back panels, (2) ESD ports, 30" length of duct, (2) duplex power receptacles, cage nuts, labeling for cable routing, strain relief bars, (4) power cablesIndustrial Distribution Frame, 26RU
Panduit ZDF48-6RA is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- US
- EAN
- 00613056168558
- GTIN Package
- 00613056168558
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 1
- Pallet Weight
- 282.0000
- REACH Status
- False
- RoHS Compliant
- Not Sold In Europe
- Standard Package Volume Ft3
- 52.8889
- Standard Package Weight Pounds
- 282.0000
- Std Package Height In
- 85
- Std Package Height MM
- 2159
- Std Package Length In
- 64
- Std Package Length MM
- 1625.6
- Std Package Width In
- 42
- Std Package Width MM
- 1066.8
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305616855
Specifications
- Application
- Industrial Automation
- Color
- Gray
- Compatible Switch Type
- 19" Rack Mount
- Finish/Coating
- Powder-Coated
- Includes
- 26RU Dual Hinge NEMA 4/4x/12 Enclosure; Quarter-Turn Slotted Latches are Included Providing Access Control to the Enclosure; Accommodations for an Optional Air Conditioner; 316L Stainless Steel W/ #4 Stainless Finish; Installed Front and Rear Cage Nut Rails in Optimized Positions for Equipment Mounting; Installed Power Receptacle on ZDF48-6RA Only; Installed Fiber Enclosure (72 Fiber Capacity); Installed (2) 48-Port Patch Panels; Installed Cable Management; Installed Door Ground Whips; Equipment Ground Whips (One End); Installed Ground Bar; Infrastructure Ground Cable; Power Cords, Labeled and Length Optimized on ZDF48-6RA Only; 10" Long DIN Rail Mounting Provision; Cable/Fiber/Power Penetration Recommendation Template; Instructions for Cable Routing and Management
- IP Rating
- 4X/12 or 4/4X/12, IP66
- Material
- 316 Stainless Steel
- Maximum Load Capacity (kg)
- 158.8
- Maximum Load Capacity (lb)
- 350.09
- Mount Method
- Wall Mount
- NEMA Rating
- 4 or 4X
- Number of Ports
- 72
- Number of Rack Units
- 26
- Overall Depth (In.)
- 31
- Overall Depth (mm)
- 787.4
- Overall Height (In.)
- 48.54
- Overall Height (mm)
- 1232.9
- Overall Width (In.)
- 23.62
- Overall Width (mm)
- 599.9
- Product Segment
- IAI
- Product Type
- Industrial Distribution Frame
- Standards Met
- UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12 and IP66 Rated; RoHS Compliant
- Sub Brand
- IndustrialNet™
- Switch Capacity
- 5
