Panduit ZDF242430
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

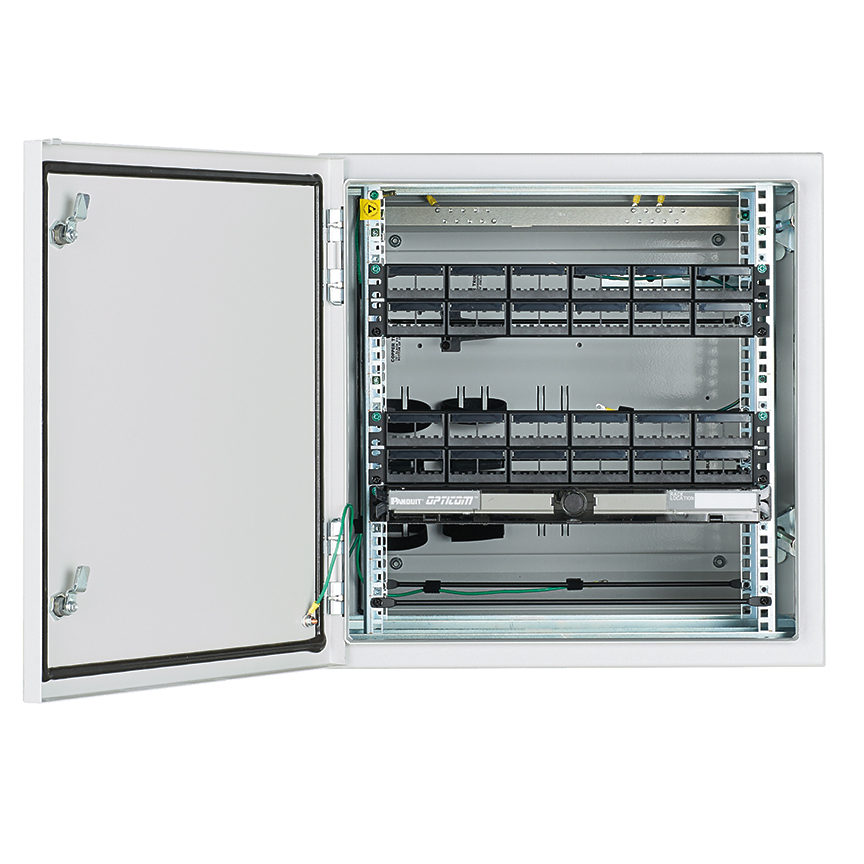

The pre-configured industrial distribution frame (IDF) is 12 RU and is made for two 19" rack mount switches. The IDF is engineered to deploy and protect 19" rack mount switches on the factory floor. The IDF protects switches, both physically and thermally in harsh industrial environments. The IDF includes keys, cage nut rails, one fiber tray, two patch panels, cable management, ground whips/bar/cable, DIN rail mounting provision, and cable/fiber/power penetration recommendation template.Industrial Distribution Frame, 12 RU
Panduit ZDF242430 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Packaging Details
- ARRA Compliant
- Y
- Country of Origin 2Digit
- US
- EAN
- 00613056268593
- GTIN Package
- 00613056268593
- Hazardous Material Flag
- N
- Mercury Content Indicator
- No
- Min Order Qty
- 1
- Min. Order UOM
- Piece
- Pallet Quantity
- 1
- Pallet Weight
- 200.0000
- REACH Status
- False
- RoHS Compliant
- Compliant
- Standard Package Volume Ft3
- 44.8148
- Standard Package Weight Pounds
- 200.0000
- Std Package Height In
- 40
- Std Package Height MM
- 1016
- Std Package Length In
- 44
- Std Package Length MM
- 1117.6
- Std Package Width In
- 44
- Std Package Width MM
- 1117.6
- Std. Pkg. Qty.
- 1
- Std. Pkg. UOM
- Piece
- UOM EA PK
- EA
- UPC
- 61305626859
Specifications
- Application
- Industrial Automation
- Color
- Gray
- Compatible Switch Type
- 19" Rack Mount
- Finish/Coating
- Powder-Coated
- Includes
- 12RU Dual Hinge NEMA 4/12 Enclosure; Keylocking Wing Knobs are Included Providing Access Control to the Enclosure; (2) Keys are Included with Each Enclosure; Accommodations for an Optional Air Conditioner; Installed Front and Rear Cage Nut Rails in Optimized Positions for Equipment Mounting; Installed Fiber Enclosure (72 Fiber Capacity); Installed (2) 48-Port Patch Panels; Installed Cable Management; Installed Door Ground Whips; Equipment Ground Whips (One End); Installed Ground Bar; Infrastructure Ground Cable; 10" Long DIN Rail Mounting Provision; Cable/Fiber/Power Penetration Recommendation Template; Instructions for Cable Routing and Management
- IP Rating
- IP66
- Material
- Mild Steel
- Maximum Load Capacity (kg)
- 113.4
- Maximum Load Capacity (lb)
- 250
- Mount Method
- Wall Mount
- NEMA Rating
- 4/12
- Number of Ports
- 72
- Number of Rack Units
- 12
- Overall Depth (In.)
- 29.95
- Overall Depth (mm)
- 760.7
- Overall Height (In.)
- 24.09
- Overall Height (mm)
- 611.9
- Overall Width (In.)
- 23.62
- Overall Width (mm)
- 599.9
- Product Segment
- IAI
- Product Type
- Industrial Distribution Frame
- Standards Met
- UL 508A Standard for Industrial Control Panels, cUL Listed per CSA, UL Type 4/12 or 4/4X/12 and IP66 Rated; RoHS Compliant
- Switch Capacity
- 2
