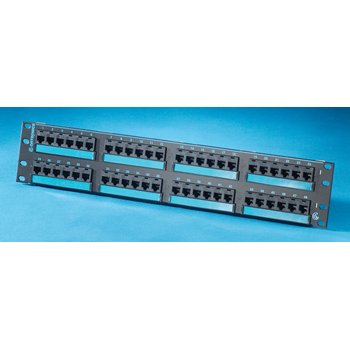

Ortronics OR-PHD66U48
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Clarity 6 48-port high density Category 6 patch panel is component compliant to EIA/TIA Category 6 performance requirements. It occupies two rack units, and measures 19" x 3.5". Jacks are grouped in six-port modules. Part of the Clarity 6 link and channel solution that provides significant installed performance headroom.Clarity 6 48-port Category 6 patch panel, six-port modules, 19" x 3.5" OR-PHD66U48
Ortronics OR-PHD66U48 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Buy American Act Compliance
- Buy American Act Status
- Trade Agreement Act Compliant
- Country Of Origin
- MEXICO
Construction Information
- Component 1
- Panel
- Component 2
- Six-port jack housing
- Component 3
- Six-port rear IDC housing
- Component 4
- Array of eight modular dual reactance Cat6 contacts
- Component 5
- IDC contacts (low noise)
- Finish Plating 1
- Painted black - texture with blue silkscreen
- Finish Plating 4
- Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
- Finish Plating 5
- Nickel plating with tin over plate
- Material 1
- .094" Aluminum
- Material 2
- High impact thermoplastic UL 94V-0
- Material 3
- Polycarbonate
- Material 4
- Beryllium Copper
- Material 5
- Phosphor Bronze
Dimensions
- Cable Diameter Range
- 22-26 AWG
- Depth (Metric)
- 31.75 mm
- Height (Metric)
- 88.9 mm
- Height (US)
- 3.5"
- Width (Metric)
- 482.6 mm
General Info
- Mod Jack Wiring
- Universal T568A/B
- Number Of Ports
- 48
- Performance Category
- Cat 6 component compliant
- Product Series
- Clarity
- Type
- Patch Panels
Listing Agencies/Third Party Certifications
- CUL Listing No
- E131600
- ETL Listed
- Yes
- ETL Listing No
- 3013270-004
- FCC Standard
- Yes
- RoHS
- Yes
- UL Listing No
- E131600
- UL Standard
- Yes
Technical Information
- Category Rating
- Cat 6 component compliant
- Performance Rating
- Cat6
