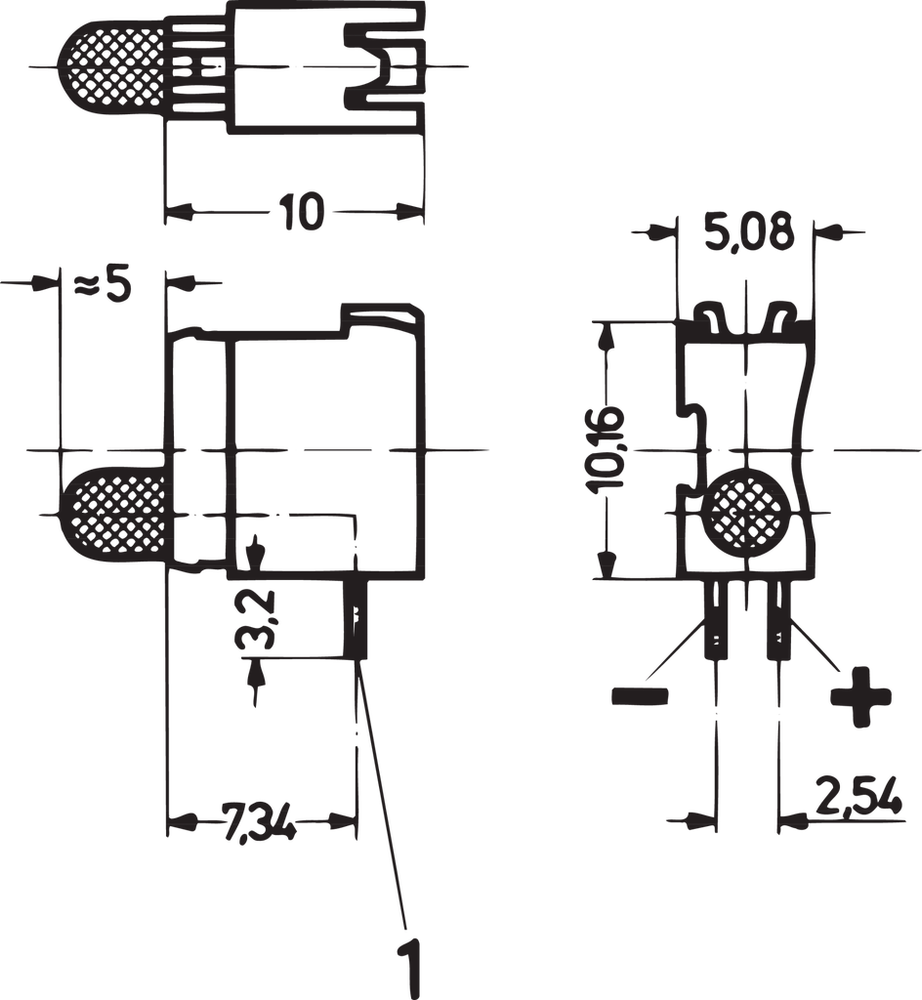

nVent 69004-265
Description
nVent Schroff 69004-265 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Absolute Max Data, Ta=25°C
- Low current LED
- Angle of Reflected Beam (degree)
- ± 50°
- Color
- Green
- Configuration
- Mounting plane 1
- Current
- Standard
- Flammability of Insulation Body
- UL 94 V-0
- Forward Current, t < 10 μs (milliampere)
- 75
- Forward Voltage Type, 10 mA/2 mA (volt)
- 2.2
- Insulating Body
- PBT (Crastin)
- LED
- Single LED, short
- Luminous Intensity @ 10 mA (millicandela)
- 24.6
- Luminous Intensity @ 20 mA (millicandela)
- 54.9
- Luminous Intensity @ 2 mA (millicandela)
- 2
- Max Forward Voltage, 10 mA/2mA (volt)
- 3
- On-State Current (milliampere)
- 30
- Operating Temperature (degree Celsius)
- –55 ... +100 °C
- Power Dissipation (milliwatt)
- 75
- Product Category
- PCB Accessories / Retainers
- Product Structure
- Product¦Printed circuit board hardware¦PCB accessories
- Product Subgroup
- Front element systems
- Product Type
- LED
- Purchase Quantity
- 1 piece (SPQ 10)
- Reverse Voltage (volt)
- 3
- Solder Temperature (degree Celsius)
- 260 °C/max. 5 sec (processing advice for wave soldering: protect plastic body against solder wave)
- Standard Pack Quantity
- 10
- Storage Temperature (degree Celsius)
- –55 ... +100 °C
- Subcategory
- PCB accessories
- Thermal Resistance (degree Celsius per watt)
- 470
- Type
- Single LED
- Usage
- Long type ‰ 5 mm
- Wavelength, 10 mA/2 mA (nanometre)
- 563
- Works With
- Front Panels
