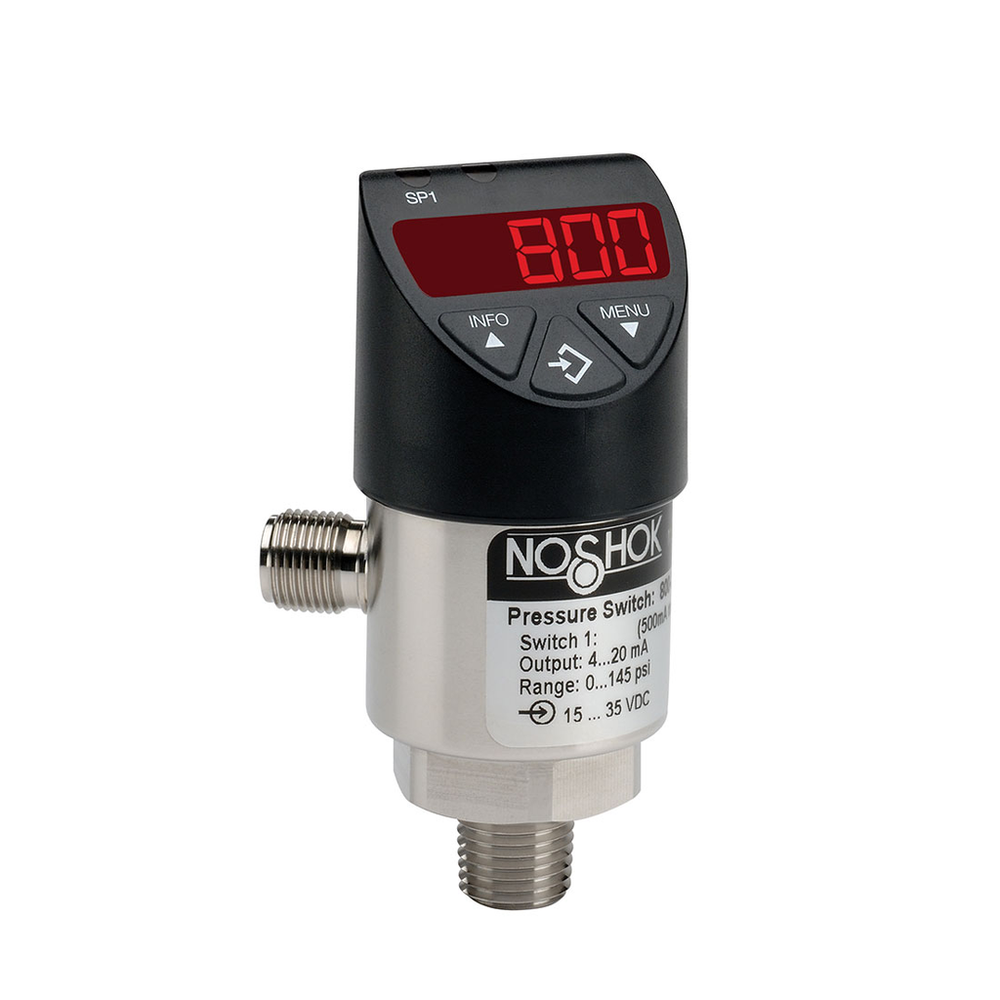

NOSHOK 800-1-2-2000-2

Specifications

• Accuracy for Transmitter Parameter
  • ≤ ±0.5% of span including non-linearity, hysteresis, zero offset and end value deviation (corresponds to measured error per IEC 61298-2)
• Adjustment
  • Freely scalable within the range of 5:1
• Ambient Temperature Range
  • -20 to 80 ºC, -4 to 176 ºF
• Compensated Temperature Range
  • 0 to 80 ºC, 32 to 176 ºF
• Connection Material
  • 316 Stainless Steel
• Contact Rating Current [Max]
  • 250 mA
• Current Consumption
  • Max. 45 mA for versions without 4-20 mA output signal Max. 70 mA for versions with 4-20 mA output signal Total consumption max. 600 mA including switching current
• Diaphragm Seals
  • NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
• Digital Indicators
  • NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
• Direct Current (DC) Voltage
  • 15 to 35 V
• Display
  • 14 segment-LED, red 4-digit, height 0.35"
• Distribution Manifolds
  • NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
• Electrical Protection
  • Protected against reverse polarity, over-voltage and short circuit
• Industry Standards/Certifications
  • European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
• Measuring Element
  • <150 psi: 316L Stainless steel ≥ 150 psi: 316L, PH grade Stainless steel
• Media Temperature Range
  • -20 to 80 ºC, -4 to 185 ºF
• Non-Repeatability
  • < 0.1% of span (IEC 61298-2)
• Operating Temperature [Max]
  • 70 ºC, 158 ºF
• Operating Temperature [Min]
  • -20 ºC, -4 ºF
• Options and Accessories
  • Stainless Steel Threaded Orifice (ST8) Single Factory Adjusted Switch Point (Specify) Double Factory Adjusted Switch Point (Specify)
• Output Signal
  • 4 mA to 20 mA or 0 Vdc to 10 Vdc; programmable and freely adjustable
• Pressure Snubbers - Piston Type
  • Resist clogging and are self-cleaning Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application Available in Brass and 316 Stainless Steel in 1/4" NPT, 1/2" NPT or SAE J1926-3: 7/16-20 Weight approximately 0.2 lb. for 1/4" & 7/16", and approximately 0.4 lb. for 1/2"​​​​​​
• Process Connection Size
  • 1/4 in
• Response Time
  • ≤ 5 ms
• Seal & Pressure Transmitter/Switch Assembly For Wastewater, Chemical Feed
  • The NOSHOK All Non-Metallic Diaphragm Seal & Pressure Transmitter/Switch assembly is ideal for water, wastewater & chemical feed applications.
• Series
  • 800
• Service Life
  • 10,000,000 load cycles
• Shock According to International Electrotechnical Commission (IEC) 60068-2-27
  • < 50 g
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Switch Adjustable Range
  • 0 to 2,000 psig
• Switching Function
  • 2 Normally Open (N.O.) or 2 Normally Closed (N.C.) (Positive-Negative-Positive (P-N-P) or Negative-Positive-Negative (N-P-N))
• Switching Number
  • 1|2
• Switch Parameter
  • Individually adjustable via external control keys
• Type
  • Electronic Indicating Pressure Switch
• Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
  • < 20 g
• Weight
  • 0.49 lb
