NOSHOK 628-20000-1-1H-14-3

Specifications

• Ambient Temperature Range
  • -40 to 85 ºC, -40 to 185 ºF
• Burst Pressure at 3 Times Full Scale [Max]
  • 22,500 psi
• Compensated Temperature Range
  • 5 to 60 ºC, 40 to 140 ºF
• Connection Material
  • Inconel X-750
• Digital Indicators
  • NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
• Electrical Protection
  • Reverse polarity, over-voltage and short circuit protected
• Industry Standards/Certifications
  • European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
• Load Limitations
  • ≤ (VPower-10)/0.020 Amp
• Measuring Element
  • Inconel X-750
• Media Temperature Range
  • -40 to 85 ºC, -40 to 185 ºF
• Operating Temperature [Max]
  • -85 ºC, 185 ºF
• Operating Temperature [Min]
  • -40 ºC, -40 ºF
• Options and Accessories
  • Carrying Handle (CH) Electrical Connector Cage (EC)
• Output Signal
  • 4 mA to 20 mA, 2-Wire
• Pin A
  • + Supply
• Pin D
  • Ground
• Pin F
  • Shunt Cal
• Power Requirement
  • 10 Vdc to 28 Vdc
• Pressure Range
  • 0 to 20,000 psig
• Proof Pressure Range at 1.5 Times Full Scale [Max]
  • 22,500 psi
• Response Time
  • < 2 ms
• Series
  • 628
• Service Life
  • < 10,000,000 load cycles
• Shock According to International Electrotechnical Commission (IEC) 60068-2-27
  • 100 g
• Stability
  • ≤ ±0.2% full scale for 1 year, non-accumulating
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Swivel Adapters
  • Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.
• Type

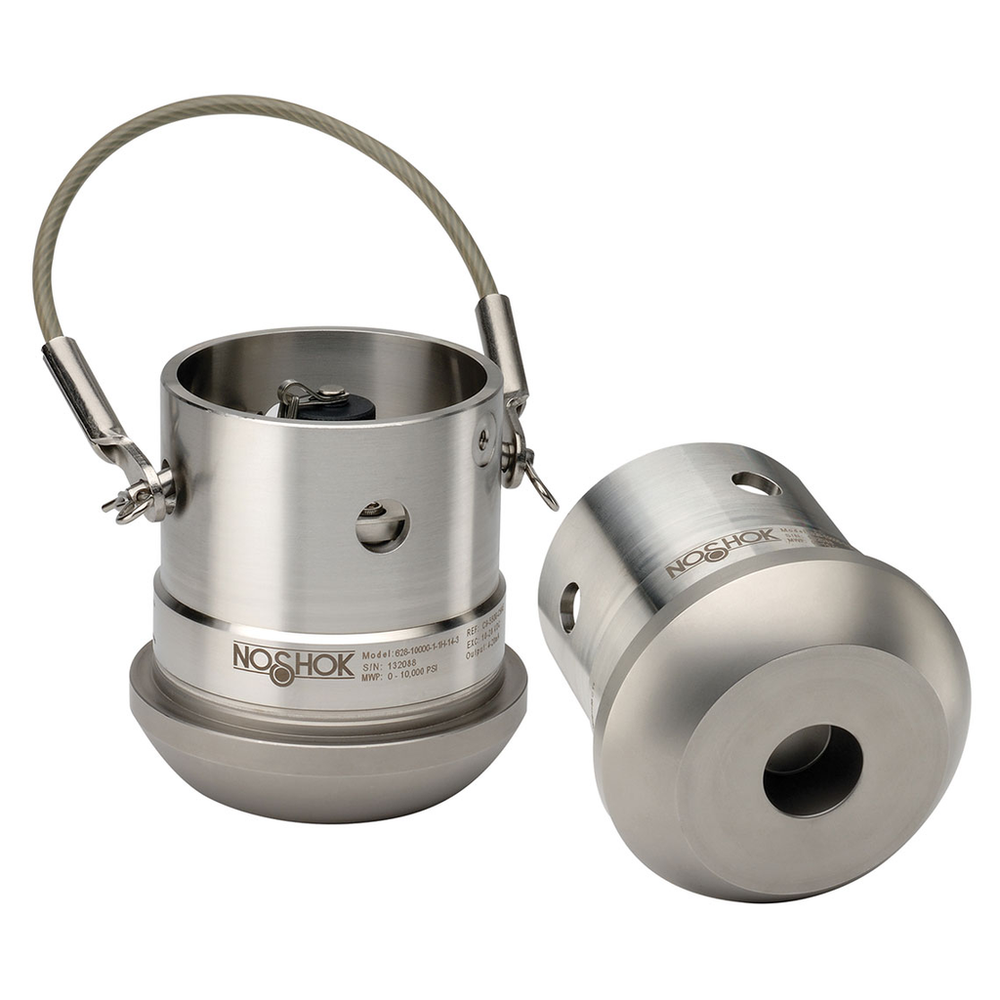

  • Safe Hammer Union Pressure Transmitter
• Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
  • 15 g
• Warranty
  • 3 yr
• Weight
  • 6 lb
