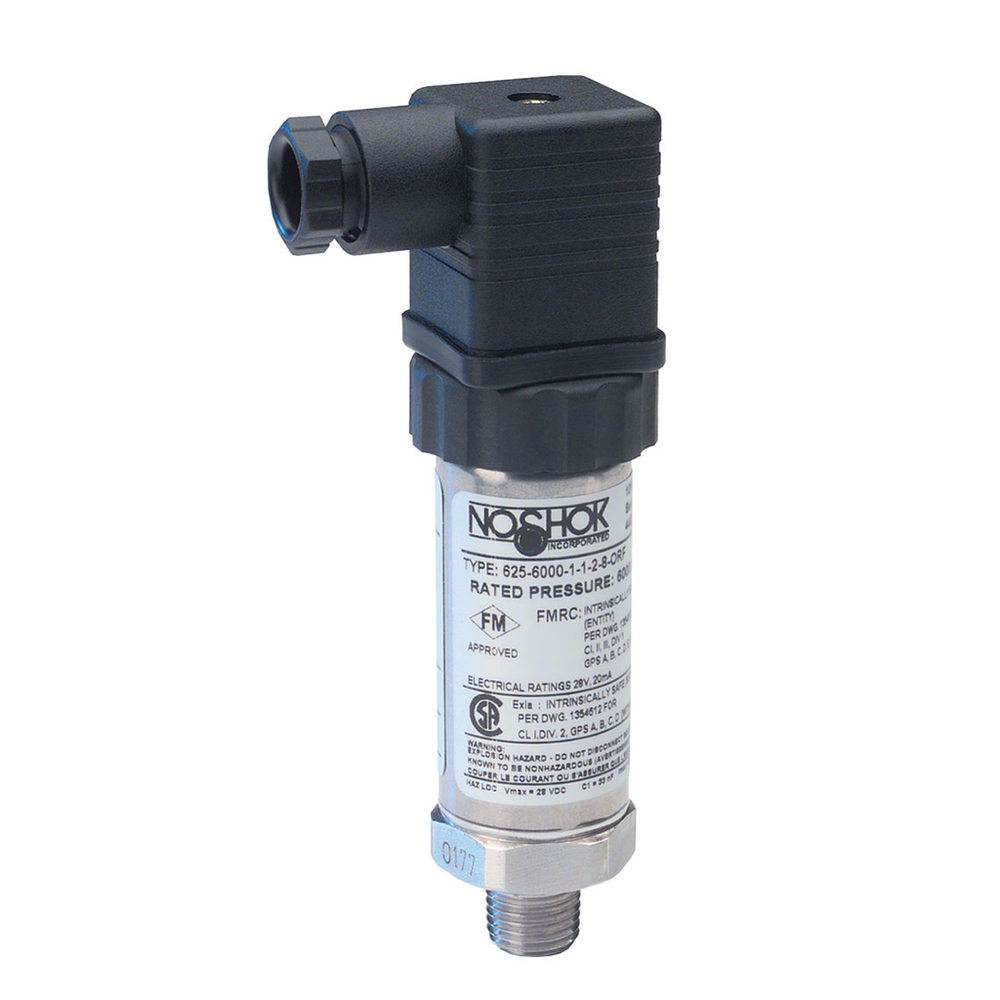

NOSHOK 625-300A-1-1-8-8

Specifications

• Adjustment
  • ± 10% full scale for zero and span
• Ambient Temperature Range
  • -20 to 80 ºC, -4 to 176 ºF
• Application
  • Chemical processing Gas pressure measurement Oil field & offshore Mining Vapory recovery systems Well head measurement
• Approximate Weight
  • 7 oz
• Compensated Temperature Range
  • 0 to 80 ºC, 32 to 176 ºF
• Connection Material
  • 316 Stainless Steel
• Digital Indicators
  • NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
• Electrical Connection
  • DIN EN 175301-803 Form A
• Electrical Protection
  • Reverse polarity, over-voltage and short circuit protected
• Industry Standards/Certifications
  • European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
• Load Limitations
  • ≤ (VPower-10)/0.020 Amp
• Measuring Element
  • 316 stainless steel for ranges up through 0 psi to 300 psi, 316 stainless steel with 17-4PH stainless steel for ≥300 psi
• Media Temperature Range
  • -20 to 85 ºC, -4 to 185 ºF
• Operating Temperature [Max]
  • 105 ºC, 221 ºF
• Operating Temperature [Min]
  • -30 ºC, -22 ºF
• Options and Accessories
  • SS Threaded Orifice- 625 Only (ST8) G 1 Weld-on Adaptor - 626 Only (G1) G 1/2 Weld-on Adaptor - 626 Only (G1/2)
• Output Signal
  • 4 mA to 20 mA, 2-Wire
• Power Requirement
  • 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire)
• Pressure Range
  • 0 to 300 psia
• Response Time
  • ≤1 ms
• Series
  • Stainless Steel Threaded Connection
• Service Life
  • < 100,000,000 load cycles
• Shock According to International Electrotechnical Commission (IEC) 60068-2-27
  • 1,000 g
• Stability
  • ≤ ± 0.2% full scale for 1 year, non-accumulating
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Swivel Adapters
  • Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.
• Type
  • Safe Pressure Transmitter
• Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
  • 20 g
• Warranty
  • 3 yr
