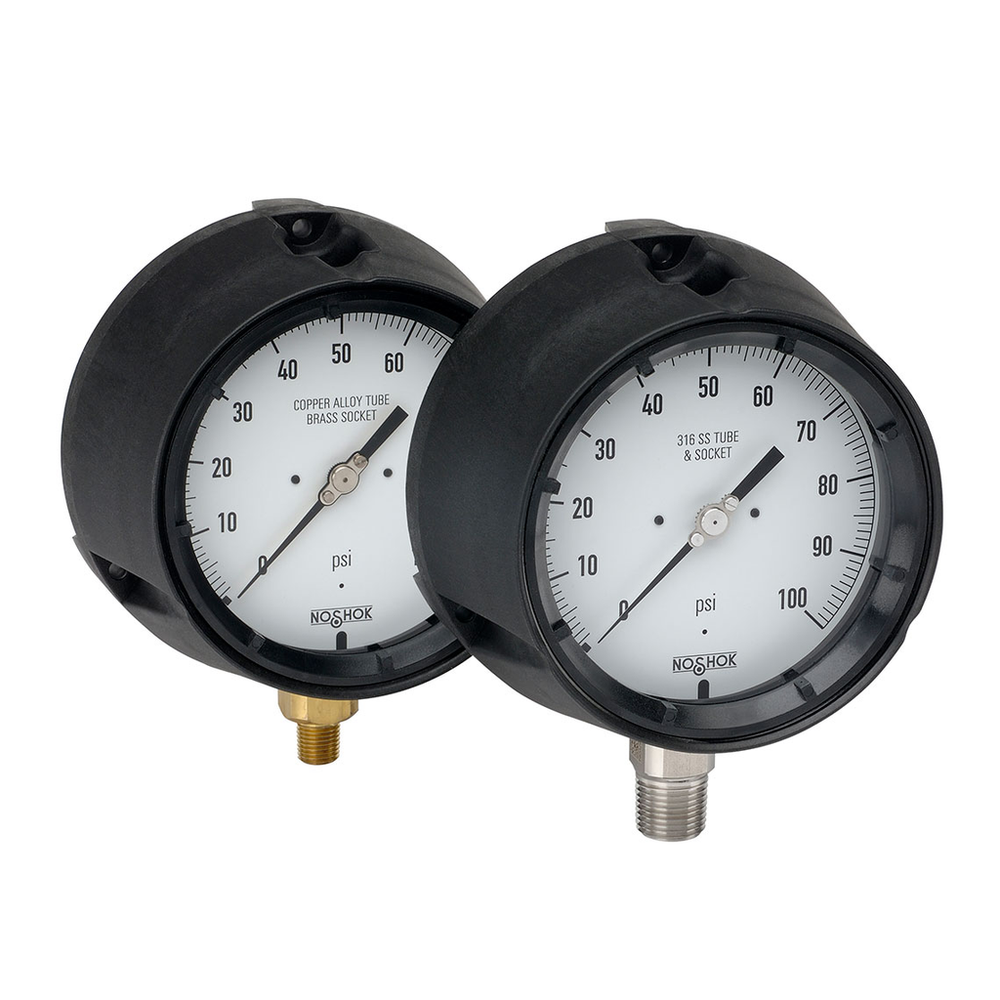

NOSHOK 45-760-400-psi/kg/cm2

Specifications

• Accuracy
  • 0.5 %
• Ambient Temperature Range (Glycerin Fill)
  • -20 to 65 ºC, -4 to 150 ºF
• Ambient Temperature Range (Special Fill)
  • -40 to 65 ºC, -40 to 150 ºF
• Assembly Options
  • NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
• Bayonet Ring Material
  • Threaded Black PBT
• Case Type
  • Stainless Steel (SS), Liquid Filled, Bottom Connect
• Connection Location
  • Bottom
• Connection Material
  • 316 Stainless Steel
• Dial/Display Size
  • Aluminum, white background with black scale. UV resistant.
• Diaphragm Seals
  • NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
• Distribution Manifolds
  • NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
• Fill Liquid
  • Glycerin
• Gauge Size
  • 4.5 in
• Installed Options and Accessories
  • Available 10-32-UNF-2B (10-32) Orifice - 316SS Threaded 0.8 mm (ST8) - Standard Orifice - 316SS Threaded 0.5 mm (ST5) Laser Marking (LM) Stainless Steel Tagging (ST) Certificates Certified Calibration (CC), Vacuum through 15,000 psi Cleaning for Oxygen Service (O 2 ), Up to 1,000 psi Cleaning for Oxygen Service (O 2 ), 1,500 psi and up
• Lens/Display Material
  • Acrylic
• Material
  • Turret Style Black Polypropylene Case Solid Front, Safety Case with Blow-Out Back
• Measuring Element
  • 316 Stainless Steel C-Type Bourdon Tube
• Media Temperature Range (Glycerin Fill)
  • -20 to 100 ºC, -4 to 212 ºF
• Media Temperature Range (Special Fill)
  • -40 to 100 ºC, -40 to 212 ºF
• Metric Dials and Customized Special Dials
  • Dual scale metric dials in psi/bar, psi/kPa and psi/kg/cm 2 Other scales are available for specific sizes and ranges, such as single scale bar and kPa, refrigerant scales and altitude scales Customized special dials such as non-standard metric scale, tons of ram, lbs. of force, etc. are available in small quantities (as few as one piece) on some NOSHOK gauges Please consult the factory for availability.
• Movement
  • Stainless steel with highly polished bearing surfaces. An internal zero stop is standard.
• Pointer
  • Balanced micro-adjustable aluminum, black finish
• Pressure Range
  • 0 to 400 psi
• Reid Vapor Test Gauges
  • Configuration includes a handle, special dial and special pressure port Configuration includes a handle, special dial and special pressure port
• Scale Option
  • psi/kg² Dual Scale
• Series
  • 700
• Short Term/Intermittent Temperature
  • 130 ºC, 250 ºF
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Swivel Adapters
  • Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.
• Type
  • Pressure Gauge
• Uninstalled Options and Accessories
  • Certificate of Cleaning (COCL) Certificate of Conformance (COC)
• Warranty
  • 3 yr
• Working Pressure Limitations
  • Dynamic Pressure The working pressure should be limited to 60% of the dial range. Max. 0.9x full scale Static Pressure The working pressure, where no sharp fluctuations occur, should be limited to 90% of the dial range. Max. 1x full scale. Short term max. 1.5x full scale (<10,000 psi).
