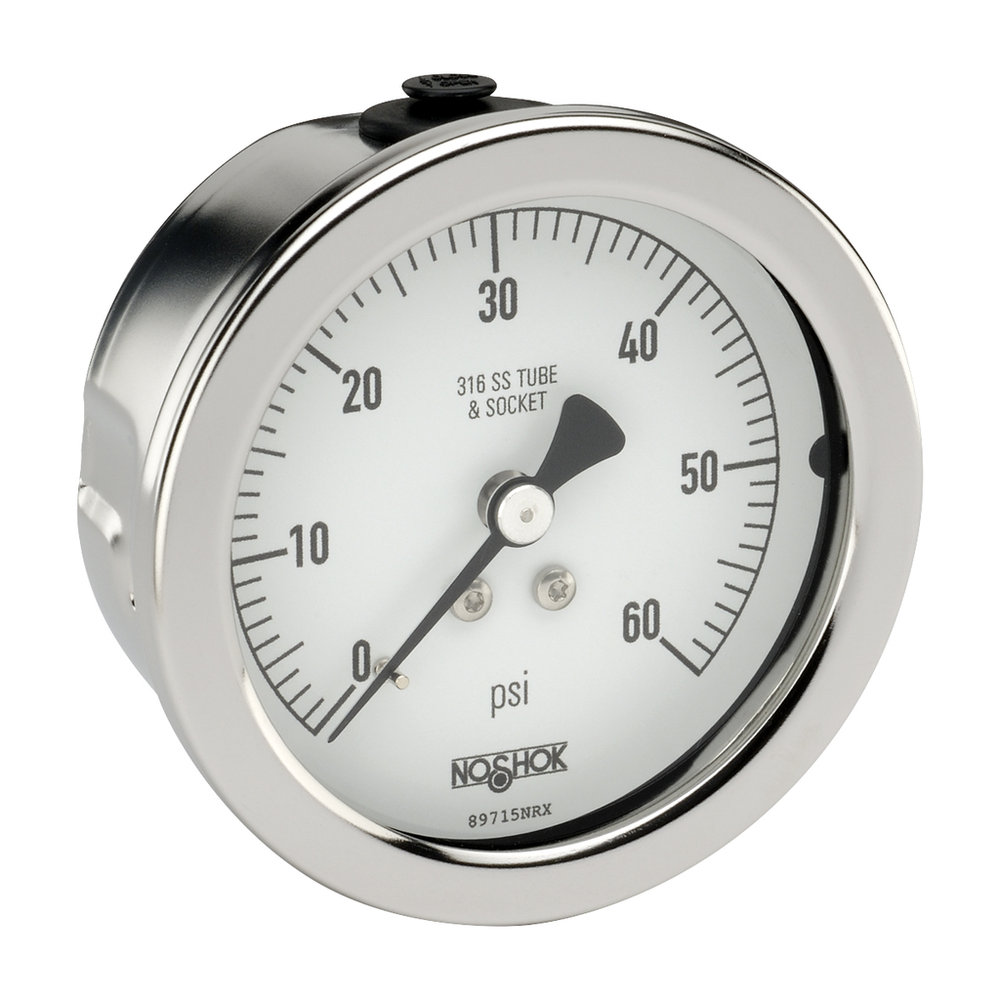

NOSHOK 25-410-3000-psi/kg/cm2

Specifications

• Accuracy
  • 1.6 %
• Ambient Temperature Range
  • -40 to 60 ºC, -40 to 140 ºF
• Assembly Option for Indication, Output, and Isolation/Bleed
  • NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution. For example, you can simplify your system with this easy-to-install solution from NOSHOK. Three simple components that require a single threaded connection in your piping system will provide local indication, analog output and block/isolate with bleed function. This product grouping is an ideal solution for a variety of applications including oil and gas, and is available in several high pressure ranges, including 5,000, 10,000 and 15,000 psi. Special design for Shale Gas applications. This example represents a general solution; however, we offer a diverse range of gauges, transmitters and valves which are available with a variety of connection options and ranges to suit your needs. (Photo shows 40-400 Series Pressure Gauge (Local Indication), 621 Series Pressure Transmitter (Control Output), and 200 Series Multi-Port Valve (Block/Isolate & Bleed).
• Case Type
  • All Stainless Steel (SS), Dry/Fillable, Back Connection
• Connection Location
  • Back
• Connection Material
  • Stainless Steel
• Cover Ring Material
  • Polished 304 Stainless Steel
• Dial/Display Size
  • Aluminum, White Background with Black Scale. Ultraviolet (UV) Resistant.
• Diaphragm Seals
  • NOSHOK offers a wide variety of standard & elevated pressure, and reduced pressure replaceable and non-replaceable diaphragm seals, designed to isolate and/or protect the pressure measuring instrument from corrosive, viscous, contaminated or very high temperature process media.
• Distribution Manifolds
  • NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
• Gauge Size
  • 2-1/2 in
• Installed Options and Accessories
  • Available 10-32-UNF-2B (10-32) Orifice - 316SS Threaded 0.8 mm (ST8) - Standard Orifice - 316SS Threaded 0.5 mm (ST5) Laser Marking (LM) Stainless Steel Tagging (ST) Certificates Certified Calibration (CC), Vacuum through 15,000 psi Cleaning for Oxygen Service (O 2 ), Up to 1,000 psi Cleaning for Oxygen Service (O 2 ), 1,500 psi and up
• Lens/Display Material
  • Trogamide
• Material
  • Polished 304 Stainless Steel with Safety Relief Plug
• Measuring Element
  • Coiled Safety Tube
• Media Temperature Range
  • -40 to 200 ºC, -40 to 392 ºF
• Metric Dials and Customized Special Dials
  • Dual scale metric dials in psi/bar, psi/kPa and psi/kg/cm 2 Other scales are available for specific sizes and ranges, such as single scale bar and kPa, refrigerant scales and altitude scales Customized special dials such as non-standard metric scale, tons of ram, lbs. of force, etc. are available in small quantities (as few as one piece) on some NOSHOK gauges Please consult the factory for availability.
• Movement
  • Stainless Steel with Highly Polished Bearing Surfaces
• Pointer
  • Balanced Aluminum, Black Finish
• Pressure Range
  • 0 to 3,000 psi
• Refrigeration Gauges with Dials Reading in Pressure and Temperature
  • Refrigeration gauges with dials reading in pressure and temperature are available in NOSHOK 300, 400 and 500 Series Pressure Gauges for R-12 and R-22
• Scale Option
  • psi/kg/cm² Dual Scale
• Steam Syphons
  • Protect the instrument from the damaging effects of high temperature steam Recommended for use in all steam applications Available in 1/4" and 1/2" NPT sizes in welded steel, welded 316 Stainless Steel or seamless 316 Stainless Steel with ratings to 3,800 psi at 850 ºF
• Swivel Adapters
  • Temperature ratings: 15,000 psi at 200 ºF and 3,000 psi at 1,000 ºF Used with gauges and gauge valves to adjust the line of sight Rotates 360º to allow the connected instrument to be positioned in the desired direction The pressure connection is achieved with a tapered cone style compression fitting simply by tightening the swivel hex nut All 316 Stainless Steel construction Standard with 1/2" NPT male process - 1/2" NPT female instrument connections Also available with 1/4" NPT connections, same specifications apply Weight approximately 0.8 lb.
• Type
  • Pressure Gauge
• Uninstalled Options and Accessories
  • Certificate of Cleaning (COCL) Certificate of Conformance (COC)
• Warranty
  • 1 yr
• Working Pressure Limitations
  • Dynamic Pressure The working pressure should be limited to 60% of the dial range. Static Pressure The working pressure, where no sharp fluctuations occur, should be limited to: <15,000 psi: 90% of the dial range, >15,000 psi: 75% of the dial range
