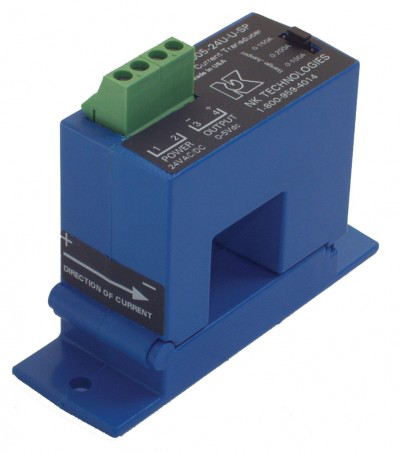

NK Technologies DT2-420-24U-U-SP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
NK Technologies DT2-420-24U-U-SP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- 1.0% FS
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Split-core, Foot Mount
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- -20 to 50 Deg. C, 0-95% RH, noncondensing
- Frequency Range
- DC
- Isolation Voltage
- UL listed to 1270 VAC, tested to 5 KV
- Listing
- UL/cUL, CE
- Output Impedence
- 0-20 mA, 4-20 mA; 500 max.
- Output Polarity
- Unipolar (output with current in one direction only)
- Output Signal
- 4-20 mA
- Power Consumption
- 2 VA
- Power Supply
- +24VAC/DC
- Range
- 100, 150, 200 A
- Repeatability
- 1% FS
- Response Time
- 100 ms average
- Sensor Type
- DC Current Transducer, Split Core, 4-Wire
- Shipping Weight
- 0.4 lbs
Williams Automation sells NK Technologies parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
