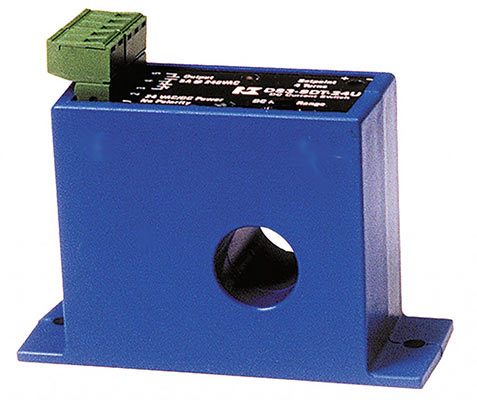

NK Technologies DS3-SDT-24U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The DS3-SDT-24U DC Current Sensing Switch/Relay combines a Hall effect sensor, signal conditioner and a limit alarm into a single package. The DS3-NOU-24U DC Current Sensing Switch/Relay offers three jumper-selected current input ranges and a frequency response from DC to 400 Hz. This model features a SPDT relay contact in a solid core case with top mounted terminals and requires a +24 VAC/VDC power supply.DS3-SDT-24U, DC Current Switches, Solid-Core
NK Technologies DS3-SDT-24U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Built-In Mounting Feet
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- Frequency Range
- DC to 400 Hz
- Hysteresis
- 5%
- Isolation Voltage
- UL listed to 1270 VAC, tested to 5 KV
- Listing
- UL/cUL, CE
- Off-state Leakage
- <10uA
- Output Description
- SPDT Relay (Form C)
- Output Rating
- 5.0 A @ 240 VAC, 5.0 A @ 30 VDC (SPDT)
- Power Consumption
- <2 VA
- Power Suppy
- =+24 VAC/DC
- Response Time
- 80 ms max.
- Sensor Type
- DC Current Sensing Switch
- Setpoint Range
- 2–20, 10–50 and 20–100 A, jumper-selectable
- Shipping Weight
- 0.4 lbs
- Time Delay
- null
