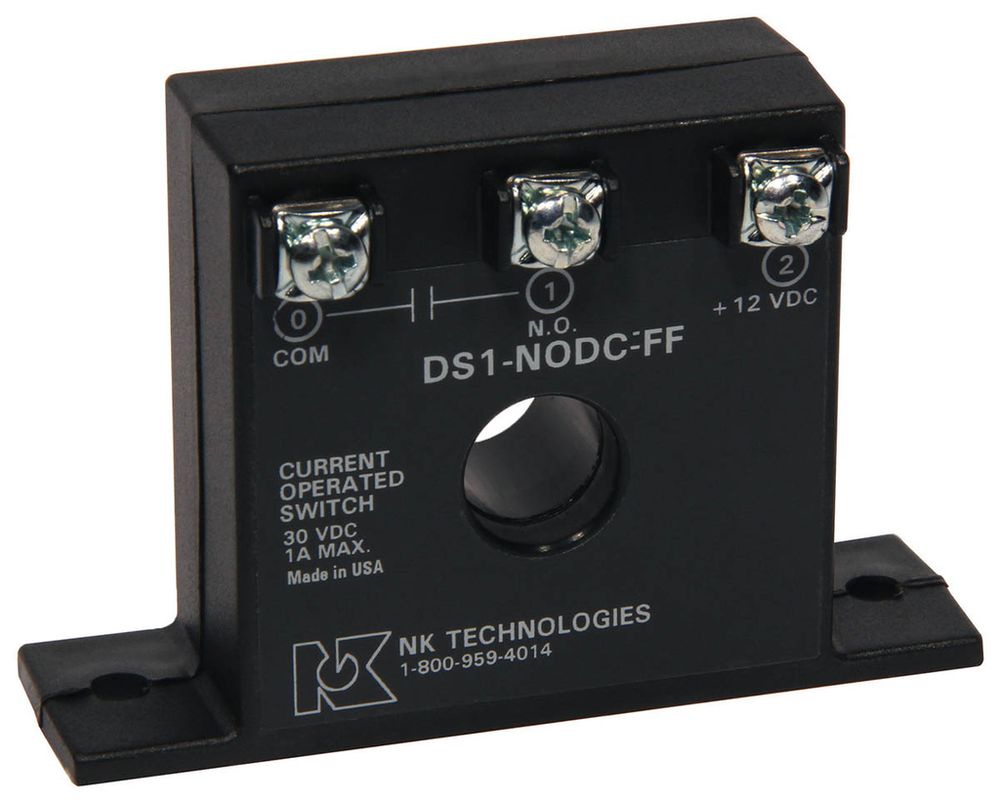

NK Technologies DS1-NODC-FF
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The DS1-NODC-FF Current Sensing Switch/Relay is designed to trip a solid-state normally open contact when there is DC current through the sensor window. The sensor can be used to interlock two operations for safety. When one load is energized, the contact will keep another from also energizing. The power supply voltage and the controlled circuit voltage can be derived from a single source or separate sources. The monitored circuit can be any DC voltage and any amount of current as long as the conductor will pass through the window. The monitored circuit is completely isolated from the control circuit. If there is 3/4 of one amp through the aperture, the output will change state. This model features a solid core case with front mounted terminals.DS1-NODC-FF, DC Current Switches, Solid-Core
NK Technologies DS1-NODC-FF is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Solid-core, Front Terminals
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- Frequency Range
- DC
- Hysteresis
- 5%
- Isolation Voltage
- Tested to 3 KV
- Listing
- UL/cUL, CE
- Off-state Leakage
- <1uA
- Output Description
- Isolated solid-state relay
- Output Rating
- 1 A up tp 30 VDC
- Overload
- 500 A continuous, 1000 A @ 5sec.
- Power Consumption
- <2 VA
- Power Suppy
- 10-28 VDC
- Response Time
- 600 ms max.
- Sensor Type
- DC Current Switch
- Setpoint Range
- 0.75 A (factory set)
- Shipping Weight
- 0.3 lbs
- Time Delay
- 0.55Ó (14mm)
