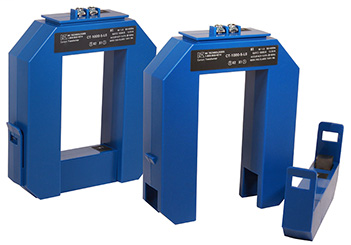

NK Technologies CT-1600-5-LS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The CT-LS 5 A Secondary Current Transformers offer a compact, cost-effective means of measuring primary current. These current transformers provide an easy-to-install method to measure AC current, producing a 0Ð5 A output proportional to the current flowing through the sensing window. The CT-LS series offers a large sensing window and a split-core design for easy installation.CT-1600-5-LS, Current Transformer, 2.36 x 3.49 inch Aperture
NK Technologies CT-1600-5-LS is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- ±1% (10–100% of range) to 50°C
- Allowable Burden
- 10.0 VA
- Case Style
- Large sensing window
- Current Range
- 0-800 through 0-1600 A
- Frequency
- 50-400 Hz
- Linearity
- 0.5% (10–100% of range)
- Listing
- UR recognized file E475131. Meets ANSI/IEEE C57.13 and IEEE C57.13.2.
- Output Signal
- 0–5 A secondary
- Power Suppy
- None, Self-powered
- Primary Circuit Voltage
- 600 VAC
- Ratio
- 1600 to 5 (5 A only)
- Sensor Type
- Secondary Current Transfomer
- Shipping Weight
- 3.0 lbs
- Thermal Rating
- 1.0 @ 30°C
