Description

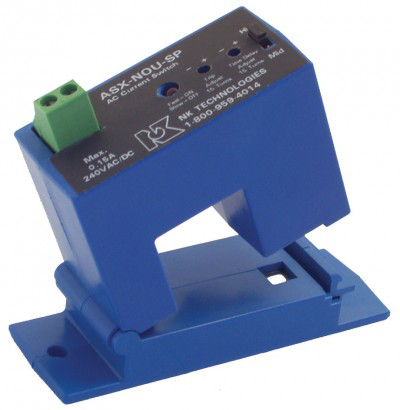

The ASX-NOU-FT AC Current Sensing Switch/Relay is a high performance current-operated switch/relay with a field-adjustable time delay to help minimize nuisance trips during start-up and operation. Designed for motor status applications where setpoint accuracy and repeatability are critical, the ASX-NOU-FT AC Current Sensor offers a linear setpoint characteristic and constant hysteresis. Standard features include self-powering, jumper-selectable ajustable ranges (1.5-12A, 12-55A, 50-200A). This model features a normally open 0.15A@240VAC/VDC contact in a solid-core case with top mounted terminals. No power supply required.ASX-NOU-FTes, AC Current Switches with Time Delays, Solid-Core
NK Technologies ASX-NOU-FT is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Solid-core
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- Frequency Range
- 50-100 Hz
- Hysteresis
- 5%
- Isolation Voltage
- UL Listed to 1,270 VAC Tested to 5,000 VAC
- Listing
- UL/cUL, CE
- Off State Leakage
- <10 micro A
- Output Description
- Isolated Solid State Relay
- Output Rating
- N.O. 0.15 A @ 240 VAC or VDC
- Overload Range
- 1.5-12A -600 A max. 12-55 A - 800 A max. 50-200 A -1200 A Max.
- Power Supply
- None - self powered
- Response Time
- 0.12 to 15 seconds
- Sensor Type
- AC Current Switches with Time Delays
- Set Point Ranges
- 2-12, 12-55 and 50-200 A (adjustable)
- Shipping Weight
- 0.3 lbs
- Time Delay
- Adjustable
