Description

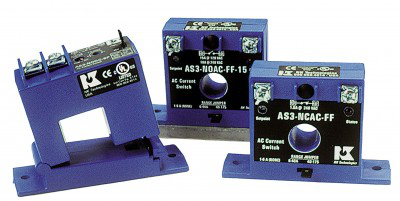

The AS3-NOAC-FF Current Sensing Switch/Relay provides the same dependable indication of status offered by the AS1 Series Current Sensing Relay, but with the added benefit of increased setpoint accuracy. A choice of three, jumper-selectable input ranges allows the AS3-NOAC-FF current sensing switch/relay to be tailored to an application, providing more precise control through improved setpoint resolution. Self-powering, isolated solid-state outputs, 1Ð6 A, 6Ð40 A and 40Ð200 A input ranges, and a solid-core case with front mounted terminals. This model features normally open 1A@240VAC contacts.AS3-NOAC-FF, AC Current Switches, Solid-Core, N.O., 1 A @ 240 VAC
NK Technologies AS3-NOAC-FF is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Solid Core, Front Terminals
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- Frequency Range
- 6-100Hz
- Hysteresis
- 5%
- Isolation Voltage
- UL Listed to 1,270 VAC, tested to 5KV
- Listing
- UL/cUL, CE
- Off State Leakage
- <10 micro amps
- Ouput Description
- Isolated solid-state relay
- Output Rating
- 1 A @ 240 VAC
- Overload-High Range
- 40-175 A: 6 sec. @ 800A; 1 sec. @ 1200A
- Overload-Low Range
- 1-6 A: 6 sec. @ 400A; 1 sec. @ 600A
- Overload-Mid Range
- 6-40 A: 6 sec. @ 500A; 1 sec. @ 800A
- Power Supply
- None - self powered
- Response Time
- 2.5 sec. max.
- Sensor Type
- AC Current Sensing Switch
- Setpoint Range
- 1-6, 6-40 & 40-175 A (adjutable)
- Shipping Weight
- 0.3 lbs
- Time Delay
- null
