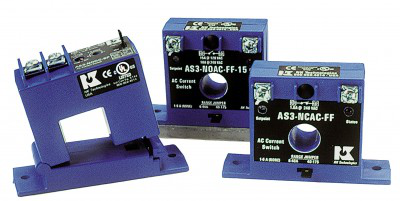

NK Technologies AS3-NCDC-SP
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The AS3-NCDC-SP Current Sensing Switch/Relay provides the same dependable indication of status offered by the AS1 Series Current Sensing Relay, but with the added benefit of increased setpoint accuracy. A choice of three, jumper-selectable input ranges allows the AS3-NCDC-SP current sensing switch/relay to be tailored to an application, providing more precise control through improved setpoint resolution. Self-powering, isolated solid-state outputs, 1.75Ð6 A, 6Ð40 A and 40Ð200 A input ranges, and a split-core case with top mounted terminals. This model features normally open 0.15A@30VDC contacts.AS3-NCDC-SP, AC Current Switches, Split-Core, N.C., 0.15 A @ 30 VDC
NK Technologies AS3-NCDC-SP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Case
- UL 94V-0 Flammability rated thermoplastic
- Case Style
- Split -Core
- Environmental
- -4 to 122°F (-20 to 50°C),0-95% RH non-condensing
- Frequency Range
- 6-100Hz
- Hysteresis
- 5%
- Isolation Voltage
- UL Listed to 1,270 VAC, tested to 5KV
- Listing
- UL/cUL, CE
- Off State Leakage
- 1.4 mA
- Ouput Description
- Isolated solid-state relay
- Output Rating
- 0.15 A @ 30 VDC Std. DC & multi-pole units
- Overload-High Range
- 40-175 A: 6 sec. @ 800A; 1 sec. @ 1200A
- Overload-Low Range
- 1-6 A: 6 sec. @ 400A; 1 sec. @ 600A
- Overload-Mid Range
- 6-40 A: 6 sec. @ 500A; 1 sec. @ 800A
- Power Supply
- None - self powered
- Response Time
- 2.5 sec. max.
- Sensor Type
- AC Current Sensing Switch
- Setpoint Range
- 1.75-6, 6-40 & 40-200 A (adjutable)
- Shipping Weight
- 0.3 lbs
- Time Delay
- null
