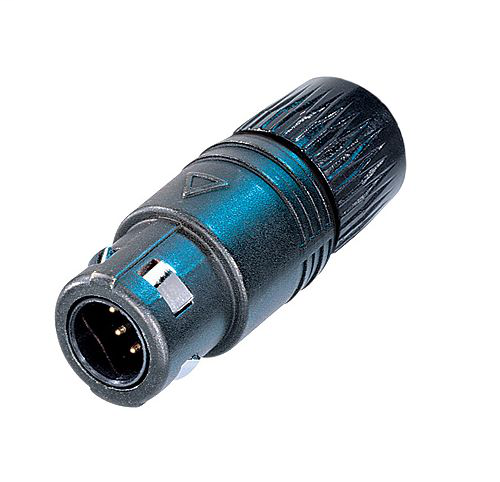

Neutrik OSC8M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutrik OSC8M is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- ≤ 5 mΩ
- Dielectric strength
- 1,5 kVdc
- Insulation resistance
- > 0.5 GΩ (after damp heat test IEC 68-2-30)
- Rated current per contact
- 7,5 A
- Rated voltage
- < 50 V
Material
- Contact plating
- 0.3 µm Au hard alloy over 2 µm Ni
- Contacts
- Brass (CuZn35Pb2)
- Insert
- PBTP 15 % GR
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Black chromium
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 3 - 7 mm
- Cable retention
- > 50 N
- Insertion force
- < 25 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Push-Pull
- Wiresize
- 18 AWG
- 1 mm²
- Wiring
- Solder contacts
Product Information
- Connection Type
- neutriCON
- Gender
- male
- Product Family
- neutriCON Connectors
- Title
- OSC8M
Specifications
- Flammability
- UL 94 HB
- Protection class
- IP 5X
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
