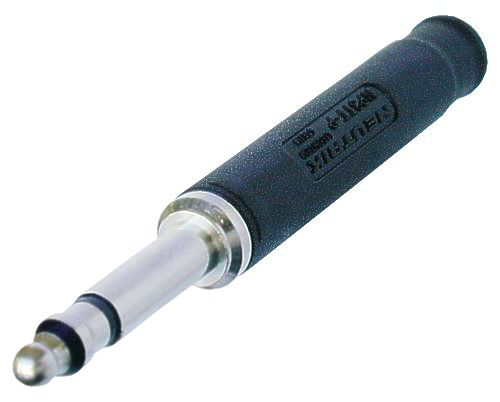

Neutrik NP3TT-P-B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutrik NP3TT-P-B is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- depends on mating connector mΩ
- Dielectric strength
- 1 kVdc
- Insulation resistance
- > 2 GΩ (initial)
- Rated current per contact
- depends on mating connector A
- Rated voltage
- < 50 V
Material
- Contact plating
- 2 µm Ni (Su)
- Contacts
- Bronze (CuSn6) (Tip)
- Insulation
- Polyamide (PA 6.6 30 % GR)
- Shell
- Polyamide (6 30% GR) (black)
Mechanic Specifications
- Cable O.D.
- 4 - 4.8 mm
- Crimp size
- 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
- Lifetime
- > 1000 mating cycles
- Wiresize
- 0,25 mm²
- 24 AWG
- Wiring
- Solder contacts
Product Information
- Connection Type
- Plug
- Gender
- male
- Product Family
- 0.173'' Bantam Type Miniature Plug
- Title
- NP3TT-P-B
Specifications
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- MIL-P-642/13
- Temperature range
- -20 °C to +65 °C
Williams Automation sells Neutrik parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
