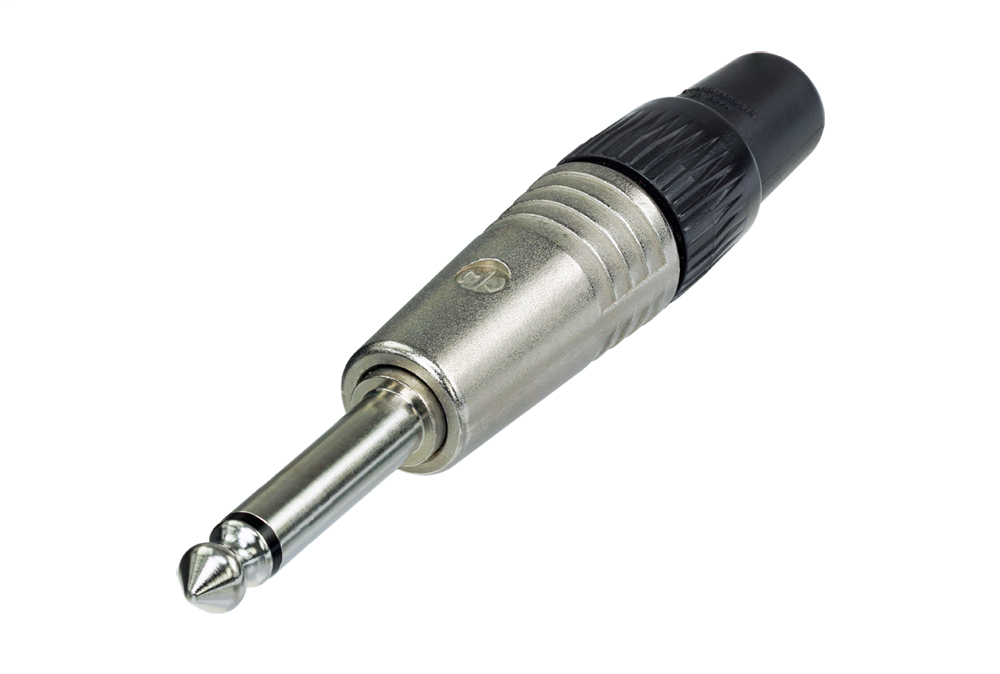

Neutrik NP2C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutrik NP2C is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- depends on mating connector mΩ
- Dielectric strength
- 1 kVdc
- Insulation resistance
- > 2 GΩ (initial)
- Rated current per contact
- depends on mating connector A
- Rated voltage
- < 50 V
Material
- Bushing
- Polyacetal (POM) + PU
- Contact plating
- 2 µm Ni (Su)
- Contacts
- Brass (CuZn39Pb3)
- Insert
- Polyamide (PA 6.6 30 % GR)
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Nickel
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 4 - 7 mm
- Lifetime
- > 1000 mating cycles
- Wiresize
- 1 mm²
- 18 AWG
- Wiring
- Solder contacts
Product Information
- Connection Type
- Plug
- Gender
- male
- Product Family
- C Series
- Title
- NP2C
Specifications
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- IEC 60603-11 / EIA RS-453
- Temperature range
- -20 °C to +65 °C
