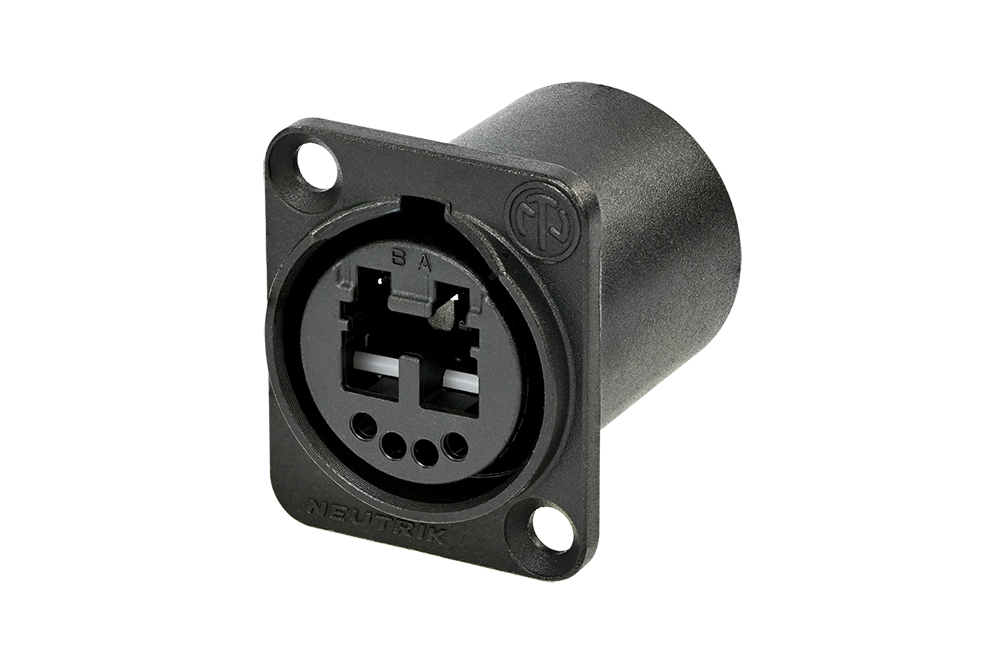

Neutrik NO2-4FDW-1-A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Chassis connector with black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof acc. to IP65 ingress protection in mated condition with SCDP-*. The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC-Duplex on the rear. It is built in the standard D size shell and features an automatic sealing cover for maximum dust and dirt protection and a Push-Pull locking mechanism for safe connection. Not compatible to SMPTE 304M standard. Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage.Chassis connector, black chromium plating, 4 solder contacts, 1 LC-Duplex feedthrough socket, 1 shell ground contact (for SMPTE cable shield), waterproof acc, to IP65 ingress protection in mated condition with SCDP-*,
Neutrik NO2-4FDW-1-A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 7 mΩ
- Dielectric strength
- 1,5 kVdc
- Ground contact
- Faston 2.8 x 0.5 (soldering possible)
- Insulation resistance
- > 2 GΩ (initial)
- Rated current per contact
- 6 A
- Rated voltage
- < 50 V (1)
Material
- Contacts
- Bronze (CuSn6)
- Insert
- Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Black chromium
- Split sleeve
- ceramics
Mechanic Specifications
- Chassis shape
- D
- Insertion force
- < 45 N
- Lifetime
- > 5000 mating cycles
- Locking device
- Push-Pull
- Locking force
- 1000 N
- Mounting direction
- Front mounting
- Withdrawal force
- < 45 N
Product Information
- Gender
- female
- Product Family
- opticalCON DUO Chassis Connectors
- Title
- NO2-4FDW-1-A
Specifications
- Temperature range
- -40 °C to +75 °C
