Neutrik NMJ6HFD2
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

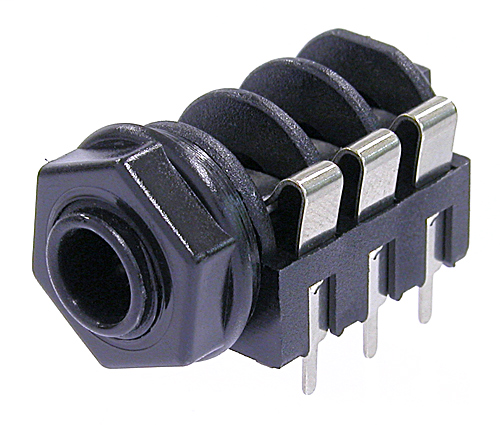

1/4" stereo jack, switched, with a full threaded nose and straight PCB pins, mounting nut included1/4" stereo jack, switched, with a full threaded nose and straight PCB pins
Neutrik NMJ6HFD2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 15 mΩ
- < 30 mΩ
- Dielectric strength
- 1 kVdc
- Insulation resistance
- ≥ 1 GΩ @ 500 V dc
- Rated current per contact
- 0,50 A @ 50 V (Switch contact)
- 3 A
- Switching contacts
- 3
Material
- Cap / Nut / Washer
- PA 6.6 15% GR
- Contact plating
- 2 µm Ag
- Contacts
- Bronze (CuSn6)
- Shell
- Polyamide (PA 6.6 15 % GR)
Mechanic Specifications
- Chassis shape
- 11.2 mm
- Insertion force
- < 30 N
- Lifetime
- > 10000 mating cycles
- Locking device
- Retention spring
- Mounting direction
- Rear mounting
- Panel thickness
- < 3 mm
- Wiring
- Horizontal PCB mount
- Withdrawal force
- > 10 N
Product Information
- Connection Type
- Jack
- Gender
- female
- Product Family
- M Series
- Title
- NMJ6HFD2
Specifications
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- EIA RS 453, IEC 60603-11
- Temperature range
- -25 °C to +70 °C
