Neutrik NMJ4HC-S
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

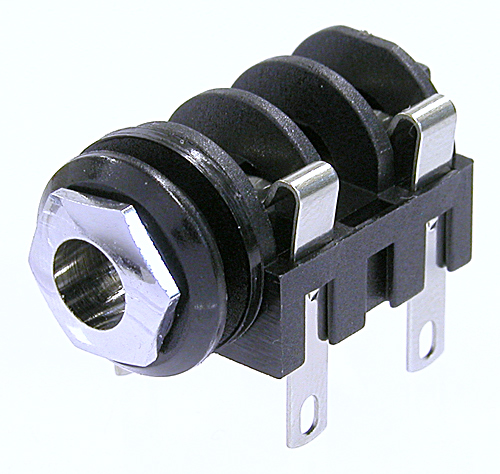

1/4" mono jack, switched, with chrome ferrule and standard solder lugs, mounting nut included1/4" mono jack, switched, with chrome ferrule and standard solder lugs
Neutrik NMJ4HC-S is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 15 mΩ
- < 30 mΩ
- Dielectric strength
- 1 kVdc
- Insulation resistance
- ≥ 1 GΩ @ 500 V dc
- Rated current per contact
- 0,50 A @ 50 V (Switch contact)
- 3 A
- Switching contacts
- 2
Material
- Cap / Nut / Washer
- PA 6.6 15% GR
- Contact plating
- 2 µm Ag
- Contacts
- Bronze (CuSn6)
- Shell
- Polyamide (PA 6.6 15 % GR)
Mechanic Specifications
- Chassis shape
- 11.4 mm
- Insertion force
- < 30 N
- Lifetime
- > 10000 mating cycles
- Locking device
- Retention spring
- Mounting direction
- Rear mounting
- Panel thickness
- < 4.7 mm
- Wiring
- Horizontal PCB mount
- Withdrawal force
- 7 N
Product Information
- Connection Type
- Jack
- Gender
- female
- Product Family
- M Series
- Title
- NMJ4HC-S
Specifications
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- EIA RS 453, IEC 60603-11
- Temperature range
- -25 °C to +70 °C
