Description

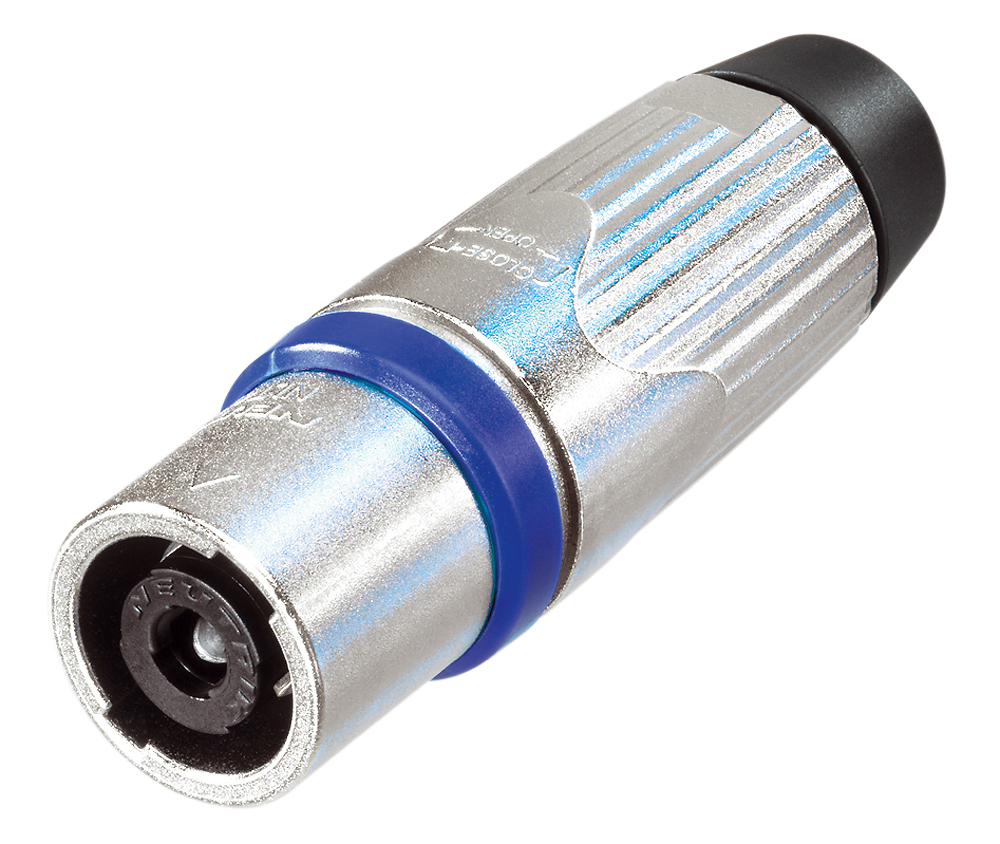

4 pole male cable connector, metal housing, chuck type strain relief The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.4 pole male cable connector, metal housing, chuck type strain relief
Neutrik NLT4MX is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Attention
- speakON is NOT to be used as an AC mains or power supply connector!
- Contact resistance
- < 2 mΩ (after lifetime)
- Dielectric strength
- 4 kVdc (peak)
- Insulation resistance
- > 10 GΩ
- Rated current per contact
- 40 A rms continuous
- 50 A audiosignal, duty cycle 50 %
- Rated voltage
- 250 V ac
Material
- Contact plating
- 4 µm Ag
- Contacts
- Spring copper
- Insert
- Polyamide (PA 6 30 % GR)
- Locking element
- Zinc diecast (ZnAl4Cu1)
- Shell
- Zinc diecast (ZnAl4Cu1)
- Strain relief
- Polyacetal (POM)
Mechanic Specifications
- Cable O.D.
- 9 - 16 mm
- Cable retention
- ≥ 220 N (subject to cable O.D. and material)
- Lifetime
- > 5000 mating cycles
- Locking device
- Quick Lock (latch)
- Wiresize
- 10 AWG
- 6 mm²
- Wiring
- Solder contacts
Product Information
- Connection Type
- speakON
- Gender
- male
- Product Family
- STX Series
- Title
- NLT4MX
Specifications
- Flammability
- UL 94 HB
- Protection class
- IP 54 (mated condition)
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
