Neutrik NLT4FP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

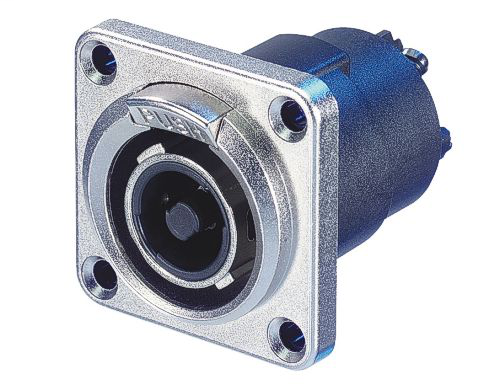

4 pole female chassis connector, metall housing, solder contacts The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.4 pole female chassis connector, metall housing, solder contacts
Neutrik NLT4FP is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Attention
- speakON is NOT to be used as an AC mains or power supply connector!
- Contact resistance
- < 2 mΩ (after lifetime)
- Dielectric strength
- 4 kVdc (peak)
- Insulation resistance
- > 10 GΩ
- Rated current per contact
- 40 A rms continuous
- 50 A audiosignal, duty cycle 50 %
- Rated voltage
- 250 V ac
Material
- Contact plating
- 4 µm Ag
- Contacts
- Brass (CuZn39Pb3)
- Insert
- Polyamide (PA 6 30 % GR)
- Locking element
- Zinc diecast (ZnAl4Cu1)
- Shell
- Zinc diecast (ZnAl4Cu1) Ni
Mechanic Specifications
- Chassis shape
- square G-size flange
- Layout
- four thru holes
- Lifetime
- > 5000 mating cycles
- Locking device
- Quick Lock
- Wiresize
- 6 mm²
- 10 AWG
- Wiring
- Solder contacts
Product Information
- Connection Type
- speakON
- Gender
- female
- Product Family
- STX Series
- Title
- NLT4FP
Specifications
- Flammability
- UL 94 HB
- Protection class
- IP 54 (mated condition)
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
