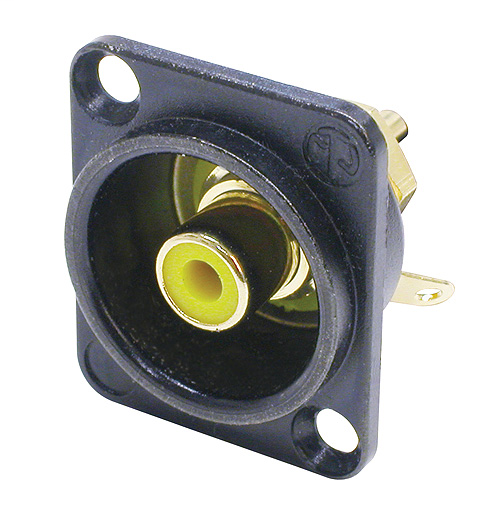

Neutrik NF2D-B-4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutrik NF2D-B-4 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Capacitance between contacts
- ≤ 9 pF
- Contact resistance
- <5G mΩ
- Dielectric strength
- 0,5 kVdc
- Insulation resistance
- < 5 GΩ
- Rated current per contact
- 16 A
- Rated voltage
- < 50 V
Material
- Contact plating
- 0.05 µm Au over 2 µm Ni
- Contacts
- Brass (CuZn39Pb3)
- Shell
- Zinc diecast (ZnAl4Cu1)
Mechanic Specifications
- Chassis shape
- D
- Lifetime
- > 2000 mating cycles
- Mounting direction
- Front mounting
- Wiring
- Solder contacts
Product Information
- Connection Type
- RCA
- Gender
- female
- Product Family
- Phono (RCA) Chassis Connectors
- Title
- NF2D-B-4
Specifications
- Flammability
- UL 94 HB
- Protection class
- IP 40
- Solderability
- Complies with IEC 68-2-20
- Standard compliance
- IEC 601-14
- Temperature range
- -30 °C to +80 °C
Williams Automation sells Neutrik parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
