Neutrik NE8FBH
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

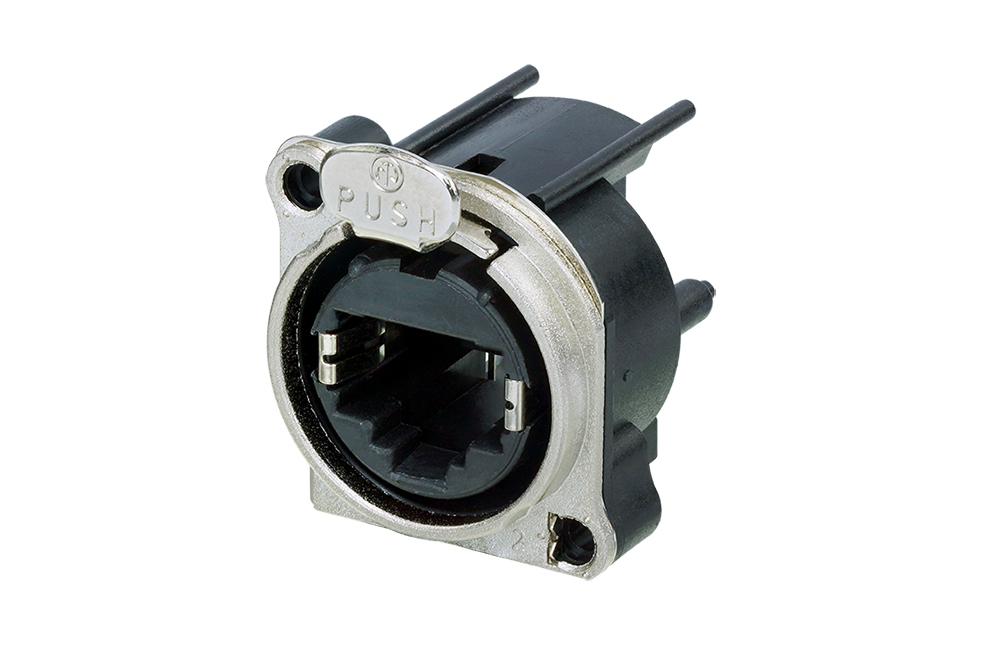

Horizontal PCB mount RJ45 receptacle, B-Series cutout with latch lock, max. panel thickness 3 mm The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The B-Series offers a space saving design and a rugged metal front plate. Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.Horizontal PCB mount RJ45 receptacle, B-Series cutout with latch lock, max, panel thickness 3 mm
Neutrik NE8FBH is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Electric Specifications
- Contact resistance
- < 10 mΩ
- Dielectric strength
- 1 kVdc
- Frequencyrange
- 1 - 100 MHz
- Insulation resistance
- > 0.5 GΩ
- Rated current per contact
- 1,5 A
- Rated voltage
- < 50 V
- Standard compliance
- TIA/EIA 586B, IEC11801
- Transmission performance
- Class D
Material
- Contact plating
- 0.2 µm Au over Ni plating
- Contacts
- Bronze (CuSn8)
- Insert
- PBTP 15 % GR
- Shell
- Zinc diecast (ZnAl4Cu1)
- Shell plating
- Nickel
Mechanic Specifications
- Chassis shape
- B
- Insertion force
- ≤ 20 N
- Lifetime
- > 1000 mating cycles
- Locking device
- Latch lock
- Mounting direction
- Rear mounting
- Panel thickness
- max. 3 mm 0.12'
- Wiring
- Horizontal PCB mount
- Withdrawal force
- ≤ 20 N
Product Information
- Gender
- female
- Product Family
- etherCON B Series
- Title
- NE8FBH
Specifications
- Flammability
- UL 94 V-0
- Solderability
- Complies with IEC 68-2-20
- Temperature range
- -30 °C to +80 °C
