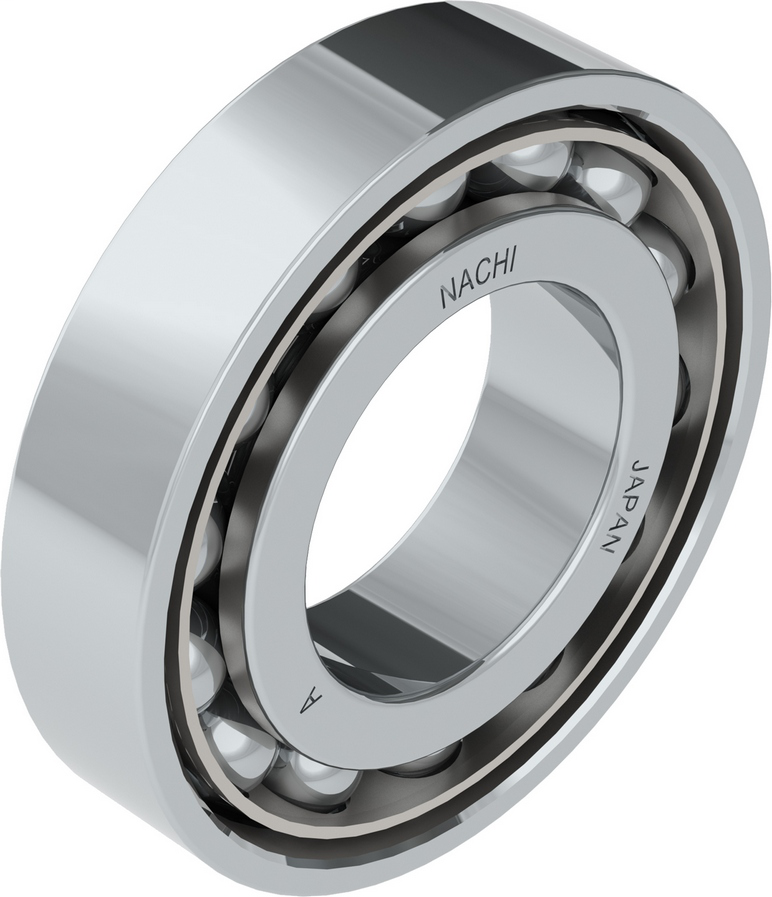

Nachi America 7209B

7209B - Angular Contact Ball Bearing - Single - 40° - (45x85x19) SINGLE ROW ANGULAR CONTACT BALL BEARINGS The Single Row Angular Contact Ball Bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The high thrust capacity is achieved by a higher shoulder on one side of the outer ring. A matching high shoulder is often on the opposite side of the inner ring as well. The direction of the load through the balls forms the contact angle. The thrust capacity increases with the contact angle. This ball bearing has a 40° contact angle. This bearing has a stamped steel cage and is not available with seals or shields. These bearings are non-separable. These bearings have normal tolerances and are not suitable for mounting adjacent to each other to achieve a preload.7209B - Angular Contact Ball Bearing - Single - 40°

Nachi America 7209B is now available new, surplus, and used from Williams Automation.

If you need a specific firmware or series relating to this item, please call or email us with your request.

We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.

Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.

Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
