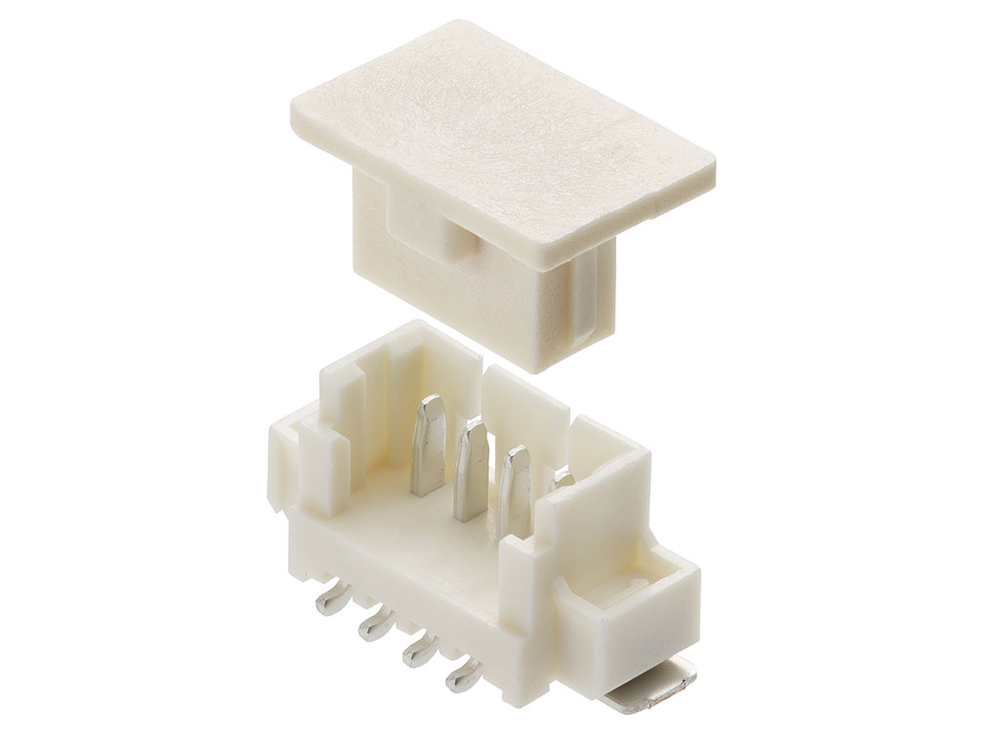

Molex 533980467
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Molex 533980467 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Agency Certification
- UL
- E29179
Electrical
- Current - Maximum per Contact
- 1.0A
- Voltage - Maximum
- 125V
Physical
- Breakaway
- No
- Circuits (Loaded)
- 4
- Circuits (maximum)
- 4
- Color - Resin
- Natural
- Durability (mating cycles max)
- 30
- First Mate / Last Break
- No
- Flammability
- 94V-0
- Glow-Wire Capable
- No
- Guide to Mating Part
- No
- Lock to Mating Part
- Yes
- Mated Height
- 5.70mm
- Material - Metal
- Phosphor Bronze
- Material - Plating Mating
- Tin
- Material - Plating Termination
- Tin
- Material - Resin
- Nylon
- Net Weight
- 264.400/mg
- Number of Rows
- 1
- Orientation
- Vertical
- Packaging Type
- Embossed Tape on Reel
- PCB Locator
- No
- PCB Retention
- Yes
- PC Tail Length
- 0.60mm
- Pitch - Mating Interface
- 1.25mm
- Polarized to Mating Part
- Yes
- Polarized to PCB
- Yes
- Robotic Placement
- Pick and Place Cap
- Stackable
- No
- Temperature Range - Operating
- -40° to +85°C
- Termination Interface: Style
- Surface Mount
Product Environmental Compliance
- EU ELV
- Not Relevant
- EU RoHS
- Compliant
- Low-Halogen Status
- Not Low-Halogen
- REACH SVHC
- Not Contained Per -D(2020)9139-DC (19 Jan 2021)
Reference - Drawing Numbers
- Packaging Specification
- SPK-53398-002-001
- Product Specification
- PS-51021-025-001
- Sales Drawing
- 533980001-SD-000
