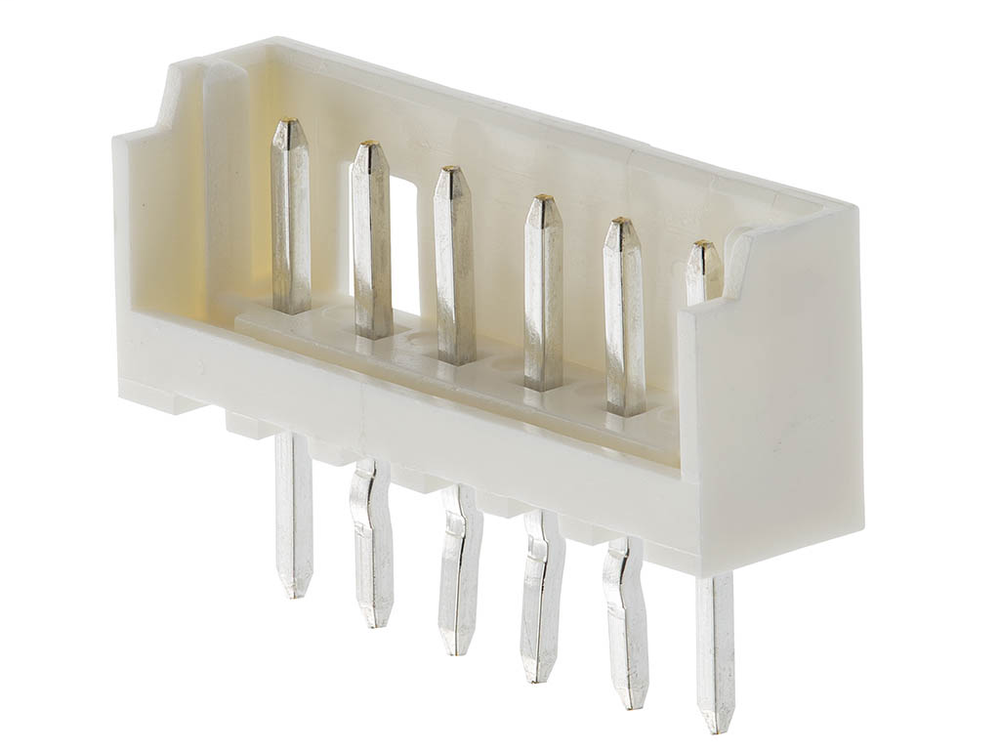

Molex 532531470
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
2.00mm Pitch, Micro-Latch PCB Header, Single Row, Vertical, Through Hole, Tin (Sn) Plating, 14 Circuits, Tray, 3.50mm PC Tail Length
Molex 532531470 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Agency Certification
- UL
- E29179
Electrical
- Current - Maximum per Contact
- 2.0A
- Voltage - Maximum
- 125V
Physical
- Breakaway
- No
- Circuits (Loaded)
- 14
- Circuits (maximum)
- 14
- Durability (mating cycles max)
- 30
- First Mate / Last Break
- No
- Glow-Wire Capable
- No
- Lock to Mating Part
- Yes
- Material - Metal
- Brass
- Material - Plating Mating
- Tin
- Material - Plating Termination
- Tin
- Material - Resin
- Nylon
- Net Weight
- 523.000/mg
- Number of Rows
- 1
- Orientation
- Vertical
- Packaging Type
- Tray
- PCB Locator
- No
- PCB Retention
- Yes
- PCB Thickness - Recommended
- 1.60mm
- PC Tail Length
- 3.50mm
- Pitch - Mating Interface
- 2.00mm
- Plating min - Mating
- 1.016µm
- Plating min - Termination
- 1.016µm
- Polarized to Mating Part
- Yes
- Polarized to PCB
- No
- Shrouded
- Partial
- Stackable
- No
- Surface Mount Compatible (SMC)
- No
- Temperature Range - Operating
- -40° to +105°C
- Termination Interface: Style
- Through Hole
Product Environmental Compliance
- EU ELV
- Not Relevant
- EU RoHS
- Compliant
- Low-Halogen Status
- Not Low-Halogen
- REACH SVHC
- Not Contained Per -D(2020)9139-DC (19 Jan 2021)
Reference - Drawing Numbers
- Packaging Specification
- SPK-53253-001-001
- Product Specification
- 510650000-PS-000, 510651000-PS-000
- Sales Drawing
- 532530000-SD-000
