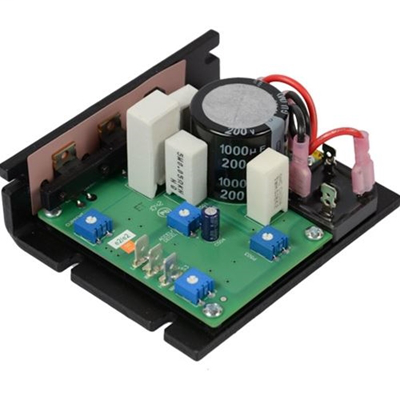

Minarik Drives XP05-115AC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Specifically designed for the original equipment manufacture (OEM), the XP05-115AC DC motor speed drive provides high performance at a low cost. This drive is well suited for XL series drive candidates who do not need all of its features. The XP05-115AC takes an AC line input, rectifies it and filters the output to create a DC bus that is chopped by pulse-width-modulation (PWM) circuitry to provide nearly pure DC power to the motor. The result is a form factor of 1.05 or less throughout the entire 80:1 speed range; compared to a 1.37 form factor from standard unfiltered SCR dirves. The near unity form factor results in smooth, quiet, cool and low maintenance motor operation. In addition, the low form factor allows drives to operate lower voltage motors without additional circuitry. The XP05-115AC drive is versatile and can accept any AC voltage between 70 and 130VAC and contain a unipolar power supply, which enables the drive to accept DC (100-160VDC); unlike typical transformer-coupled drives. Depending on your application needs, this drive will provide speed control for motors ranging from 1/4 through 1/2 HP.XP0 Series XP05-115AC XP Series
Minarik Drives XP05-115AC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.05 Form Factor
- 1% Base Speed Regulation
- 801 Speed Range
- Maximum Speed
- Acceleration/Deceleration
- Current Limit
- Accepts AC or DC Input
- Can accept 100-160 VDC or 70-130 VAC input
- Low Cost
- Designed for cost savings in large quantities for OEMs
- MM Footprint
- Traditional MM mounting pattern and footprint
Specifications
- Braking Type
- null
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 VAC
- Isolation
- null
- Output Voltage
- 0 - 130 VDC
- Reversing Type
- null
- Technology Type
- PWM
