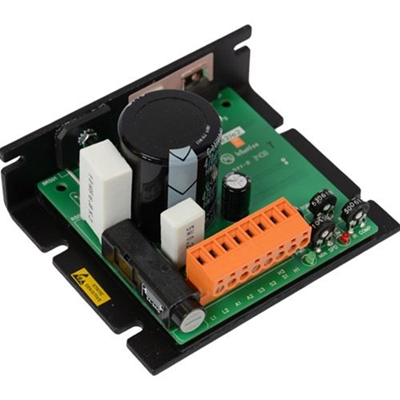

Minarik Drives XP02-115AC-Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives XP02-115AC-Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 22kHz switching frequency
- A high switching frequency means a quiet motor!
- Accepts AC or DC input
- Can accept 100-160VDC input or 70-130VAC.
- Low cost
- Designed for OEM applications.
- MM footprint
- An extremely compact size in an industry standard mounting footprint.
- Options
- '-Q'' option adds a cage-clamp type terminal block and on-board fusing.
- Spade terminals
- Easy to use, lower cost and able to fit in a smaller package.
- Speed range and regulation
- 1% regulation over 80:1 speed range.
- Stopping modes
- Decelerate to a stop (N.O.) or add dynamic braking switch and resistor.
- User adjustable calibration pots
- IR compensation, max speed, current limit and acceleration/deceleration.
Specifications
- Braking Type
- null
- Continuous Current
- 2 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 VAC
- Isolation
- null
- Output Voltage
- 0 - 130 VDC
- Reversing Type
- null
- Technology Type
- PWM
Williams Automation sells Minarik Drives parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
