Description

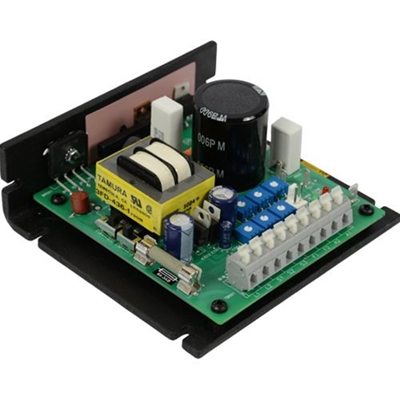

Minarik Drives XL3025A is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 22kHz switching frequency
- A high switching frequency means a quiet motor!
- AC input/DC output switches
- Allows the selection of the lower voltage (0-130VDC) DC output for either the 115 or 230VAC input selection.
- Additional features
- Dual voltage AC input, DC field supply and on-board line fuse.
- Auto-ranging power supply
- Accepts AC or DC input in the 115 to 230V range.
- Cage clamp terminal block
- Quick and easy wire terminations reduce installation time!
- Diagnostic LEDs
- LEDs for power and current limit status.
- Inhibit terminals for stopping
- Allows user to remotely coast the drive to a stop.
- Speed range and regulation
- 1% regulation over 100:1 speed range.
- User adjustable calibration pots
- IR compensation, min speed, max speed, current limit, acceleration and deceleration.
Specifications
- Braking Type
- null
- Continuous Current
- 3 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 130 / 0 -240 VDC
- Reversing Type
- null
- Technology Type
- PWM
