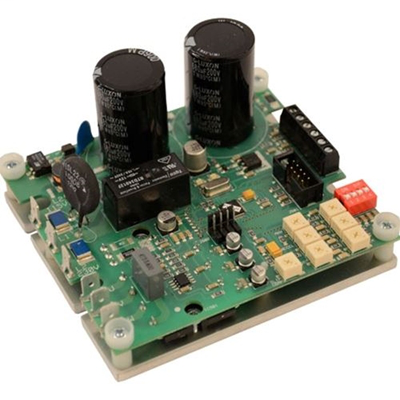

Minarik Drives UPVFD02-D230AC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives UPVFD02-D230AC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- Compact size
- Same bolt pattern as MM footprint industry standard mounting hole pattern.
- Diagnostic LED
- LED for power and status (undervoltage, overvoltage, short circuit/current trip, heating warning/trip).
- “D” models can double the output voltage
- Enables the use of a 230 VAC single or three phase motor with a 115 VAC single-phase supply. Do not use 115 VAC motors on “D” models.
- Microprocessor based
- Allows custom programing for OEMs.
- RoHS
- All VFD series models are RoHS compliant
- Stopping modes
- DC injection braking or coast to stop.
- Thermally protects
- Drive recognizes when overheated as a result of overload. It first flashes a warning code on the status LED and will eventually trip if the condition persists.
- User adjustable calibration pots
- Minimum Speed, Maximum Speed, Current Limit, Slip Compensation, Boost, Acceleration and Deceleration/DC Brake Injection.
- Use with a variety of motors
- Can be used with 3-phase induction and single-phase permanent split capacitor (PSC), shaded pole and synchronous motors.
Specifications
- Braking Type
- DC Injection
- Continuous Current
- 2.4 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 115 or 230 VAC
- Reversing Type
- Yes
