Description
RG6 Series RG61U-4S RG60U Series

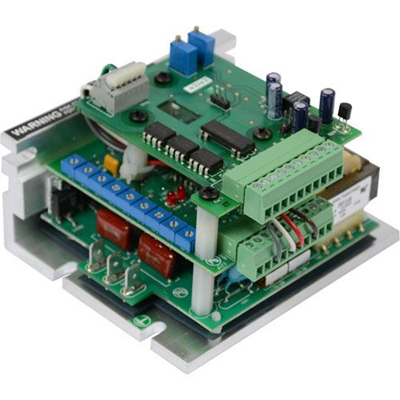

Minarik Drives RG61U-4S is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q reversing
- Regenerative/4 quadrant drives have the ability to perform quick, contactorless, reversing on-the-fly
- Additional features
- Tachometer feedback, gold extruded chassis and plastic capped trimmer pots
- Configurable enable and inhibit
- Can be configured to be either normally open or normally closed
- Diagnostic LEDs
- Power, forward current limit, reverse current limit
- MM footprint
- Extremely compact size with an industry standard mounting footprint.
- PCM option
- Add a –PCM to the end of the part number to receive the drive with an isolation daughter card for receiving non-isolated speed reference voltages between –10V and +10V
- Spade terminals and cage clamp terminal block
- Quick and easy wire connections
- Speed range and regulation
- 1% regulation over 50:1 speed range. 0.1% over 60:1 speed range with the addition of a tachometer for feedback.
- Stopping modes
- The user can decelerate (N.O.), regeneratively brake (N.O.) or coast the motor to a stop (N.O. and N.C.).
- User adjustable calibration pots
- IR compensation, max speed, min speed, forward acceleration, reverse acceleration, forward torque, reverse torque, tachometer and deadband.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 1.5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
