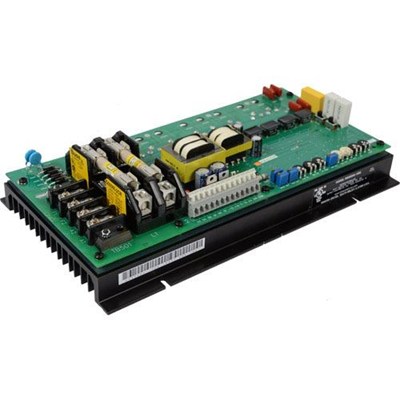

Minarik Drives RG5500U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives RG5500U is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Additional features
- Dual voltage AC input, on-board fusing.
- Cage clamp terminal block
- Quick and easy wire terminations.
- Isolated inputs
- Accepts floating or grounded signals of -250 to +250VDC, -25 to +25VDC, 1-5mA, 4-20mA or 10-50mA. Burr Brown isolation has .01% linearity.
- Speed range and regulation
- 1% regulation over 50:1 speed range. 0.1% regulation over 60:1 speed range with the addition of a tachometer for feedback. Armature or tachometer mode is switch selectable.
- Stopping Modes
- Coast to stop (N.O.) or regenerative brake (N.O. use 201-0024 plug with 18'' leads) decelerate to zero speed (N.O.).
- User adjustable calibration pots
- IR compensation, min speed, max speed, forward acceleration, reverse acceleration, forward torque, reverse torque, deadband.input adjust (for speed reference input) and tachometer.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 25 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- -250 to 250 VDC, 1-5 mA, 4-20 mA, 10-50 mA
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
Williams Automation sells Minarik Drives parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
