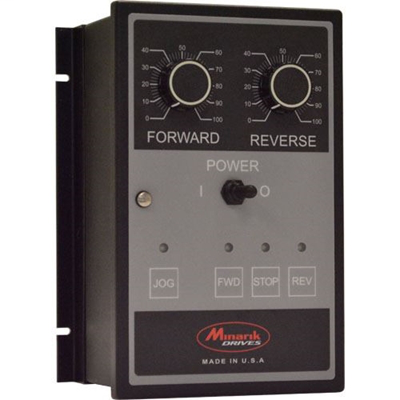

Minarik Drives RG511A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The RG511A is a dual voltage full-featured regen drive with a field supply in a rugged enclosure. This high performance drive maintains motor speed with automatic motoring and braking torque, while allowing high-duty cycle reversing and braking. The RG511A has conveniently mounted operators, which include a power on/off switch and separate forward and reverse speed potentiometers so independent speeds for each direction are easily set. Controlling the motor is easy too, by pressing a button on the membrane panel for stop, run, reverse or jog (jog speed is adjustable). The user can also wire in remote pushbuttons in conjunction with the on-board buttons. Included and wired into the RG511A package is our limit switch logic board (200-0386A). This mini-PLC can operate in one of nine modes between limit switches including continuous cycling, single cycle, dwell and more--including adjustable stop and dwell times!RG5 Series RG511A RG501 Series
Minarik Drives RG511A is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 0.1% Base Speed Regulation with Tach Feedback
- 60:1 Speed Range
- 1.37 Form Factor
- 1% Base Speed Regulation
- 4Q Reversing
- Regenerative / 4-Quadrant drives have the ability to perform quick and contractorless braking and/or reversing-on-the-fly
- Case LEDs
- Forward, Reverse, Stop, Jog
- Cycling Mode
- Designed to run in automatic cycle, single cycle, or jog mode with 1 or 2 limit switches
- Deadband
- Forward Jog
- Field Supply
- Voltage output to energize the field winding of a shunt-wound motor
- Forward Acceleration
- Forward Deceleration
- Forward Torque
- Reverse Torque
- Independent Forward and Reverse Speeds
- Two potentiometers on front cover allow different speeds in the forward and reverse directions
- IR Compensation
- Tach Feedback
- Maximum Speed
- Minimum Speed
- Membrane Switches
- Front cover includes built-in membrane switches
- NEMA 4X Enclosure
- Water resistant and dust proof enclosure
- On-board Fusing
- Drives include on-board fusing
- Pre-Wired Switches
- ON/OFF
- Reverse Jog
- Dwell Time
- Tach Feedback
- Accepts tachogenerator feedback for tighter speed regulation
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 3 Amps
- Enclosure
- NEMA 4X
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
