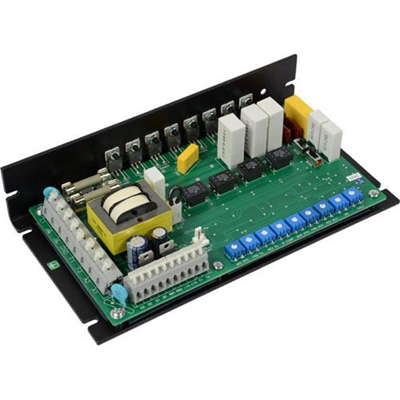

Minarik Drives RG510UA
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
RG5 Series RG510UA RG500 Series
Minarik Drives RG510UA is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Additional features
- Dual voltage AC input, switch selectable armature or tachometer feedback mode and field supply for shunt wound motors.
- Cage clamp terminal block
- Quick and easy wire terminations.
- On board fusing
- No need to add external fusing for protection of your motor or drive.
- Options and accessories
- PCM option adds Burr Brown isolation, 201-0024 inhibit plug for regenerative brake option, 200-0386 limit switch logic board and DLC600 digital controller.
- Speed range and regulation
- 1% regulation over 50:1 speed range. 0.1% regulation over 60:1 speed range with the addition of a tachometer for feedback.
- Stopping Modes
- User can decelerate (N.O.), regeneratively brake (N.O.) or coast to a stop (N.C.). User can also decelerate to min speed (N.O.)
- User adjustable calibration pots
- IR compensation, forward torque, reverse torque, tachometer, min speed, max speed, forward acceleration, reverse acceleration and deadband.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 3 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
