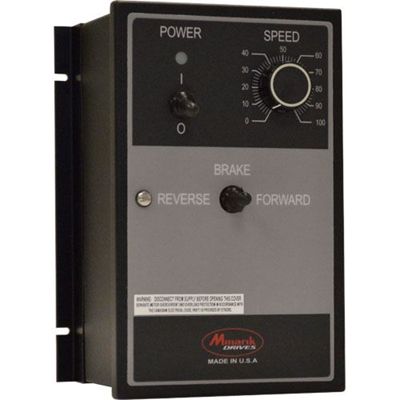

Minarik Drives RG500A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
RG5 Series RG500A RG500 Series
Minarik Drives RG500A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Diagnostic LEDs
- Power On light on front of enclosure.
- NEMA 4X enclosure
- Rugged metal enclosure protects against dirt, water and corrosive agents.
- On board fusing
- No need to add external fusing for protection of your drive.
- Screw terminal block
- Easy and secure wire terminations.
- Speed range and regulation
- 1% regulation over 50:1 speed range. 0.1% regulation over 60:1 speed range with the addition of a tachometer for feedback. Armature or tachometer mode is switch selectable.
- Stopping Modes
- User can regeneratively brake (run/brake switch), coast to a stop (power on/off switch) or decelerate to stop (N.O.). User can also decerlate to min speed (N.C).
- User adjustable calibration pots
- IR compensation, forward torque, reverse torque, tachometer, min speed, max speed, forward acceleration, reverse acceleration and deadband.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 10 Amps
- Enclosure
- NEMA 4X
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
