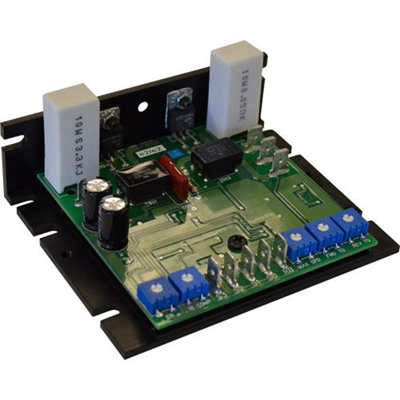

Minarik Drives RG25U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Minarik's RG25U, controls brush-type DC motors for applications that require bi-directional variable speed and smooth motoring or braking torque in either direction of rotation. The RG25U is ideal for OEMS: This half-wave SCR drive delivers 1/8 through 1/2 HP. The compact size and low-cost distinguishes it from other regenerative drives on the market. The RG25U drive uses the same chassis as our popular single-quadrant SCR drive, the MM23001C. It is one of the smallest 1/2 HP regens on the maket. Applications with overhauling loads, rapid deceleration, basic positioning and high duty cycle reversing and braking benefit from this versatile regenerative drive. The RG25U drive is ideal for low duty cycle applications.RG2 Series RG25U RG25 & RG51 Series
Minarik Drives RG25U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- MM footprint
- An extremely compact size in an industry standard mounting footprint.
- Spade terminals
- Easy to terminate wires.
- Speed range and regulation
- 3% regulation over 50:1 speed range
- Stopping Modes
- Regenerative braking (N.O.).
- User adjustable calibration pots
- IR compensation, max speed, forward torque, reverse torque and deadband.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 VAC
- Isolation
- null
- Output Voltage
- 0 - 75 VDC
- Reversing Type
- Regenerative
- Technology Type
- SCR
