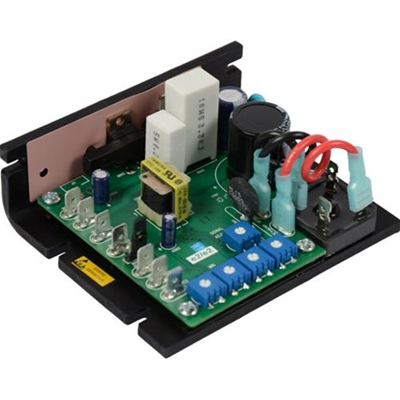

Minarik Drives PCMXP02-115AC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives expanded the XP series of low-cost, high-performance, pulse-width-modulation (PWM) DC drives to offer the PCMXP02-115AC, which accepts any external analog process control signal from 0 to 10VDC. Users can operate the drives in two distinct modes: manual mode using normal potentiometer operation, or signal mode: operation from an external signal input only. Standard XP drives are versatile and accept any voltage ranging from 70 to 130VAC. XP drives contain a unipolar power supply, which enables them to accept any DC volage input between 100 and 160VDC. Users, after proper calibration, can operate many low voltage motors without additional circuitry. The PCMXP02-115AC yields a constant 1.05 form factor or less over the entire 80:1 speed range resulting in smooth, quiet, cool and low maintenance motor operation.PCM Series PCMXP02-115AC XP Series
Minarik Drives PCMXP02-115AC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1.05 Form Factor
- 1% Base Speed Regulation
- 801 Speed Range
- Maximum Speed
- Accepts AC or DC Input
- Can accept 100-160 VDC or 70-130 VAC input
- Current Limit
- IR Compensation
- Isolated Logic
- Allows floating or grounded 0 - 10 VDC signal
- Low Cost
- Designed for cost savings in large quantities for OEMs
- Minimum Speed
- Signal Adjust
- MM Footprint
- Traditional MM mounting pattern and footprint
Specifications
- Braking Type
- null
- Continuous Current
- 2 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 VAC
- Isolation
- 0-10 VDC
- Output Voltage
- 0 - 130 VDC
- Reversing Type
- null
- Technology Type
- PWM
