Description

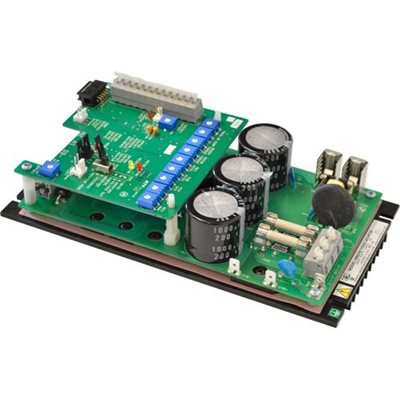

NRG Series NRG10-115AC-4Q-PCM
Minarik Drives NRG10-115AC-4Q-PCM is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Auto-ranging power supply
- Can accept a 90-240VAC or 80-340VDC as an alternative to an AC input. Connections will vary.
- Cage clamp terminal block
- Quick and easy wire terminations.
- Diagnostic LEDs
- LEDs for motoring, regen (torque or braking), current limit and over-voltage coast.
- Inhibit personality switch
- Choose whether you brake or coast to a stop. Use inhibit plug (201-0024).
- Speed range and regulation
- 1% regulation over 100:1 speed range. 0.1% regulation over 100:1 speed range with the addition of a tachometer for feedback. Armature or tachometer mode is switch selectable.
- Stopping Modes
- User can decelerate (N.O.), regeneratively brake (N.O.) or coast to a stop (N.C.).
- User adjustable calibration pots
- IR compensation, motor torque, regen torque, tachometer, min speed offset, forward max speed, reverse max speed, forward acceleration, reverse acceleration and inhibit offset.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 10 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 VAC
- Isolation
- -10 to 10 VDC
- Output Voltage
- 0 - 130 VDC
- Reversing Type
- Regenerative
- Technology Type
- PWM
