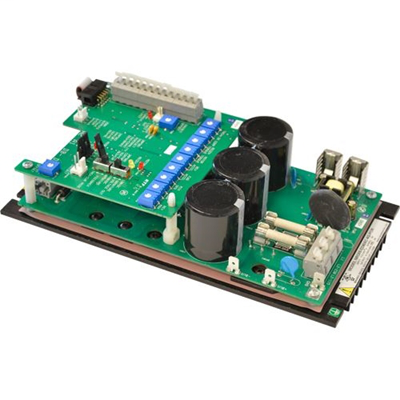

Minarik Drives NRG05-D240AC-4Q
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Minarik Drives NRG05-D240AC-4Q is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- Auto-ranging power supply
- Can accept a 90-240VAC or 80-340VDC as an alternative to an AC input. Connections will vary.
- Cage clamp terminal block
- Quick and easy wire terminations.
- Diagnostic LEDs
- LEDs for motoring, regen (torque or braking), current limit and over-voltage coast.
- Inhibit personality switch
- Choose whether you brake or coast to a stop. Use inhibit plug (201-0024).
- Speed range and regulation
- 1% regulation over 100:1 speed range. 0.1% regulation over 100:1 speed range with the addition of a tachometer for feedback. Armature or tachometer mode is switch selectable.
- Stopping Modes
- User can decelerate (N.O.), regeneratively brake (N.O.) or coast to a stop (N.C.).
- User adjustable calibration pots
- IR compensation, motor torque, regen torque, tachometer, min speed offset, forward max speed, reverse max speed, forward acceleration, reverse acceleration and inhibit offset.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 130 / 0 -240 VDC
- Reversing Type
- Regenerative
- Technology Type
- PWM
Williams Automation sells Minarik Drives parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
