Description

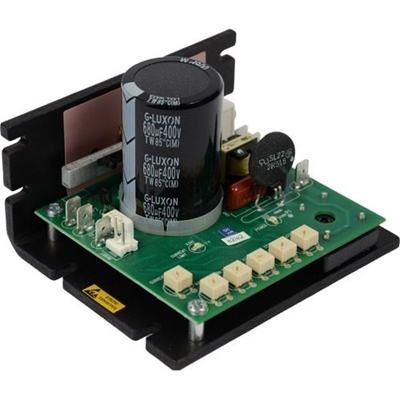

Minarik Drives has always been a leader in providing low cost PWM motor controls. With the MMXL05-D240AC-PCM, we have done it once again! We have taken a full-featured PWM drive and reduced it down to the standard MM footprint (4.30 X 3.64). Not only did we keep all the features of the larger XL Series, but we even added optical isolation to the speed circuit and the inhibit circuit in the -PCM model. This means that the speed can be controlled with any 0-5 VDC signal and many drives can be inhibited with a single contact closure. The auto-ranging power supply allows the user to apply 120 or 240VAC without adjusting any switches. The full-featured MMXL05-D240AC-PCM is one of the smallest PWM drives on the market today!MMX Series MMXL05-D240AC-PCM MMXL Series
Minarik Drives MMXL05-D240AC-PCM is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 1001 Speed Range
- Maximum Speed
- 1.05 Form Factor
- 1% Base Speed Regulation
- Auto-ranging Power Supply
- Accepts AC or DC input in the 115-230V range with no switches to set
- Deceleration
- Current Limit
- Diagnostic LEDs
- Current Limit, Power
- Isolated Logic
- Allows floating or grounded 0 - 5 VDC signal
- Minimum Speed
- Acceleration
- MM Footprint
- Traditional MM mounting pattern and footprint
- Stopping Modes
- Inhibit (N.O) for coasting to a stop. Can be used for frequent starting and stopping
Specifications
- Braking Type
- null
- Continuous Current
- 5 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- 0-5 VDC
- Output Voltage
- 0 - 130 / 0 -240 VDC
- Reversing Type
- null
- Technology Type
- PWM
