Description

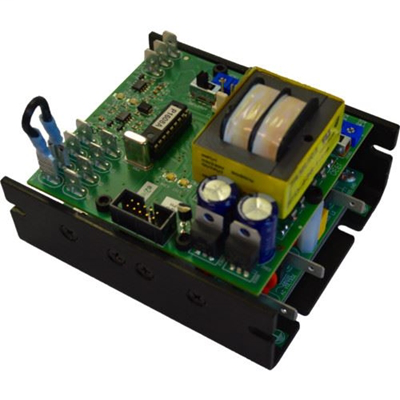

Minarik's MMRGD03-D230AC is one of the smallest full-wave, full-featured regenerative digital DC drivs on the market. The dual voltage MMRGD03-D230AC not only brakes and reverses DC brush motors on the fly, but is also in the industry standard MM footprint (3.72 X 4.42). The -PCM option can accept grounded or floating inputs of -10 to +10VDC. If only a unipolar signal is available, there is a terminal input for reversing direction by contact closure. The MMRGD03-D230AC is compatible with our DLC600 digital controller if tighter regulation of set speed is required. Contact factory for connection diagram. For applications that use limit switches, the use of the 200-0386A limit switch logic board with the MMRGD03-D230AC may be a good choice!MMR Series MMRGD03-D230AC MMRGD Series
Minarik Drives MMRGD03-D230AC is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 4Q Reversing
- Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
- MM footprint
- An extremely compact size in an industry standard mounting footprint.
- Options and accessories
- 201-0024 inhibit plug with 18 inch leads for regenerative brake option, 200-0386 limit switch logic board and a DLC600 digital controller.
- PCM option
- Add a -PCM to the end of the part number to receive the drive with an isolation transformer daughter card.
- Spade terminals
- Easy to use, lower cost and able to fit in smaller package.
- Speed range and regulation
- 1% regulation over 50:1 speed range.
- Stopping Modes
- User can decelerate (N.O.),regeneratively brake (N.O.) or coast to a stop (N.C.).
- User adjustable calibration pots
- IR compensation, max speed, forward current limit, reverse current limit and forward and reverse acceleration.
Specifications
- Braking Type
- Regenerative
- Continuous Current
- 3 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- null
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- Regenerative
