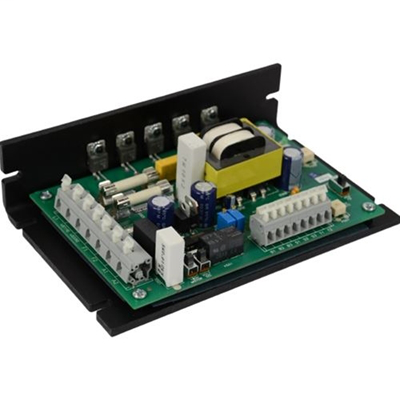

Minarik Drives MM301U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
The MM301U dual-voltage single quadrant SCR drive controls 90 or 180 VDC SCR brush-type motors ranging from 1/4Hp through 2Hp. The MM301U has integrated isolation allowing it to precisely follow analog current or voltage signals from external devices or a potentiometer as a reference for motor speed control. This results in significant labor and material cost reduction compared to other systems employing a separate drive and isolation card. This multi-featured chassis drive accepts optional input for start and stop. Depending on the application, users can run the drive open-loop with armature feedback or closed loop with tachogenerator feedback for enhanced performance. This drive accepts nearly any DC tachogenerator (7-50 V/KRPM), scaleable using an adjustable tachogenerator gain potentiometer.MM3 Series MM301U MM300 & MM500 Series
Minarik Drives MM301U is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Features
- 0.1% Base Speed Regulation over 801 Speed Range with Tach
- Maximum Speed
- 1.37 Form Factor
- 1% Base Speed Regulation over 60:1 Speed Range
- 3-Wire Start/Stop
- On-board latching relay allows for use of momentary Start/Stop pushbottons
- Deceleration
- Current Limit
- Diagnostic LEDs
- Current Limit, Power
- Field Supply
- Voltage output to energize the field winding of a shunt-wound motor
- IR Compensation
- Tach
- Isolation Logic
- Allows floating or grounded 0 - 10 VDC or 4 - 20mA signals. Burr-Brown provides .01% linearity
- Minimum Speed
- Acceleration
- Multi-turn Trim Pots
- Minimum Speed and Maximum Speed use 12 turn trim pots for finer tuning
- On-board Fusing
- Drives include on-board fusing
- Tach Feedback
- Accepts tachogenerator feedback for tighter speed regulation
Specifications
- Braking Type
- null
- Continuous Current
- 10 Amps
- Enclosure
- Chassis
- Input Voltage
- 115 / 230 VAC
- Isolation
- 0-10 VDC, 4-20 mA
- Output Voltage
- 0 - 90 / 0 - 180 VDC
- Reversing Type
- null
- Technology Type
- SCR
